Remove/install hydraulic fluid reservoir (ABC) - AR32.50-P-0022SX
MODEL 216, 221.0/1 with CODE (487) Active Body Control (ABC)
| Remove/install | |||
|---|---|---|---|
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| 1 | Remove the left engine intake air duct | ||
| 2 | Unhook switchover valve (Y58/1) | ||

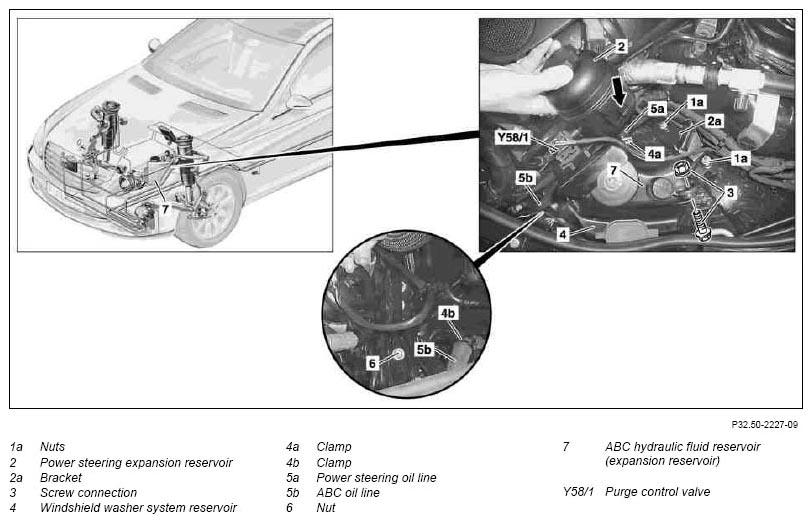

| 3 | Unclip expansion reservoir (2) from bracket; to do this, press in locking device using a screwdriver (arrow) | ||
| 4 | Empty hydraulic fluid reservoir (7) using hand pump | *210589007100 | |
| 5 | Detach reservoir (4); to do this, detach bolted connection (3) | ||
| 6 | Unscrew nuts (1a) and remove bracket (2a) | ||
| 7 | Unscrew nut (6) from longitudinal member | ||
| 8 | Open hose clamps (4a, 4b) using hose clamp pliers and detach oil lines (5a, 5b) | *003589033700 | |
| 9 | Remove hydraulic fluid reservoir (7) | ||
| 10 | Install in the reverse order | ||
| 11 | Fill and bleed ABC system | AR32.50-P-0021SX |
