Disconnect AC housing - AR83.30-P-5200-02SX

  1. Remove sound deadening mat (1) from AC housing.
  2. Detach electrical connectors (2, 7) and expose corresponding electrical wiring harnesses.
  3. Unclip retaining clamps (3) on AC housing.
  4. Unscrew screw (5).
  5. Remove combination filter housing (6) from heat exchanger/evaporator housing (4).

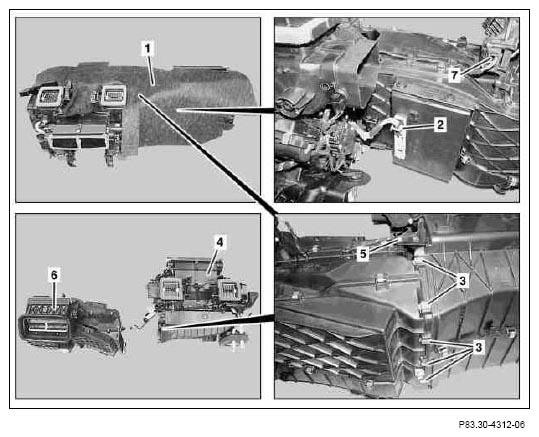

    Fig 1: Identifying Sound Deadening Mat, Electrical Connectors, Retaining Clamps, Screws And Heat Exchanger/Evaporator Housing
    G07509664Courtesy of MERCEDES-BENZ USA
