Check evaporator for leaks - AR83.30-P-5550Q

MODEL 169, 171 with CODE (580) Automatic air conditioning

MODEL 169, 171 (except 169.090) with CODE (581) Comfort automatic air conditioning

MODEL 164, 197, 199, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 240, 245, 251 (except 245.286)

Shown on model 203

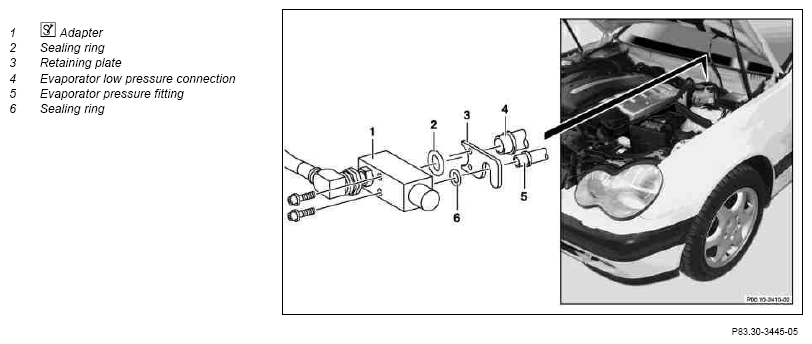

Fig 1: Identifying Evaporator Location

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of injury  caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Notes on handling R134a refrigerant	All models with R134a refrigerant	AH83.30-N-0003-01A
1	Remove expansion valve	Model 164	AR83.30-P-5520GZ
		Model 169.0/3, 245.2	AR83.30-P-5520AK
		Model 171	AR83.30-P-5520V
		Model 197	AR83.30-P-5520RQ
		Model 199	AR83.30-P-5520SLR
		Model 204, 207, 212, 218	AR83.30-P-5520CW
		Model 209	AR83.30-P-5520Q
		Model 211.0/2/6	AR83.30-P-5520T
		Model 219.3	AR83.30-P-5520TX
		Model 216.3, 221.0/1	AR83.30-P-5520SX
		Model 230.4	AR83.30-P-5520R
		Model 240 Front air conditioning	AR83.30-P-5520H
		Model 240 Rear air conditioning	AR83.30-P-5520HA
		Model 251	AR83.30-P-5520RT
2.1	Install adapter (1) and adapter hose	Model 164, 171, 197, 199, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 240 front A/C system, 251 Install adapter (1) in place of expansion valve with new sealing rings (2, 6). Moisten thread and sealing rings (2, 6) with compressor oil.
	Compressor oils (specification 362.0)		BB00.40-P-0362-00A
		Model 164, 251	*BA83.30-P-1006-01J
		Model 171, 209	*BA83.30-P-1002-01D
		Model 197	*BA83.30-P-1009-01M
		Model 199, 204, 207, 211, 212, 218, 230, 240	*BA83.30-P-1002-01A
		Model 219.3	*BA83.30-P-1005-01H
		Model 216, 221.0/1	*BA83.30-P-1003-01K
		Adapter	*463589016300
		Adapter hose	*140589516301
		Air conditioner pressure and leak tester (mobile) gotis://E_83_06.0
2.2	Install test adapter	Model 169.0/3, 245.2, 240 rear A/C Install test adapter at position of expansion valve using new sealing rings (2, 6). Moisten thread and sealing rings (2, 6) with compressor oil.
	Compressor oils (specification 362.0)		BB00.40-P-0362-00A
		Model 169.0/3, 245.2	*BA83.30-P-1001-01G
		Model 240	*BA83.30-P-1002-01A
		Test adapter	*140589516300
		Air conditioner pressure and leak tester (mobile) gotis://E_83_06.0
3	Connect test equipment to adapter (1) or test adapter
4	Check evaporator for leaks	Fill system with a system pressure of 15 bar. Pressure must be maintained for at least 4 hours. Temperature changes during the pressure test may cause pressure surges, e.g. due to weather changes or overnight cooling of the engine compartment. Make sure the ambient conditions remain constant. With negative findings: Replace evaporator, see: ↓ Remove/install evaporator
		Model 164	AR83.30-P-5540GZ
		Model 169.0/3, 245.2	AR83.30-P-5540AK
		Model 171	AR83.30-P-5540V
		Model 197	AR83.30-P-5540RQ
		Models 204, 207, 212	AR83.30-P-5540CW
		Model 209	AR83.30-P-5540P
		Model 211.0/2/6	AR83.30-P-5540T
		Model 216.3, 221.0/1	AR83.30-P-5540SX
		Model 218
		Model 219.3	AR83.30-P-5540TX
		Model 230.4	AR83.30-P-5540R
		Model 251	AR83.30-P-5540RT
		Remove/install air conditioner housing
		Model 199	AR83.30-P-5200SLR
		Model 240 Front air conditioning	AR83.30-P-5200H
		Model 240 Rear air conditioning	AR83.50-P-9020H
5	Detach test equipment from adapter (1) or test adapter
6.1	Remove adapter (1) and adapter hose	Model 164, 171, 197, 199, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 240 front A/C system, 251
		Adapter	*463589016300
		Adapter hose	*140589516301
6.2	Remove test adapter	Model 169.0/3, 245.2, 240 rear A/C
		Test adapter	*140589516300
7	Install expansion valve	Install expansion valve with new sealing rings (2, 6). Moisten thread and sealing rings (2, 6) with compressor oil.
	Compressor oils (specification 362.0)		BB00.40-P-0362-00A
		Model 164	AR83.30-P-5520GZ
		Model 169.0/3, 245.2	AR83.30-P-5520AK
		Model 171	AR83.30-P-5520V
		Model 197	AR83.30-P-5520RQ
		Model 199	AR83.30-P-5520SLR
		Model 204, 207, 212, 218	AR83.30-P-5520CW
		Model 209	AR83.30-P-5520Q
		Model 211.0/2/6	AR83.30-P-5520T
		Model 219.3	AR83.30-P-5520TX
		Model 216.3, 221.0/1	AR83.30-P-5520SX
		Model 230.4	AR83.30-P-5520R
		Model 240 Front air conditioning	AR83.30-P-5520H
		Model 240 Rear air conditioning	AR83.30-P-5520HA
		Model 251	AR83.30-P-5520RT

Fig 2: Identifying Test Adapter (140 589 51 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter Hose (140 589 51 63 01)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter (463 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
