Seam sealing following repair, side damage - AR97.10-P-4000-03TA
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
- Seal spot welds and rivets in repaired area with seam sealing material.
Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.
Observe standard seals!

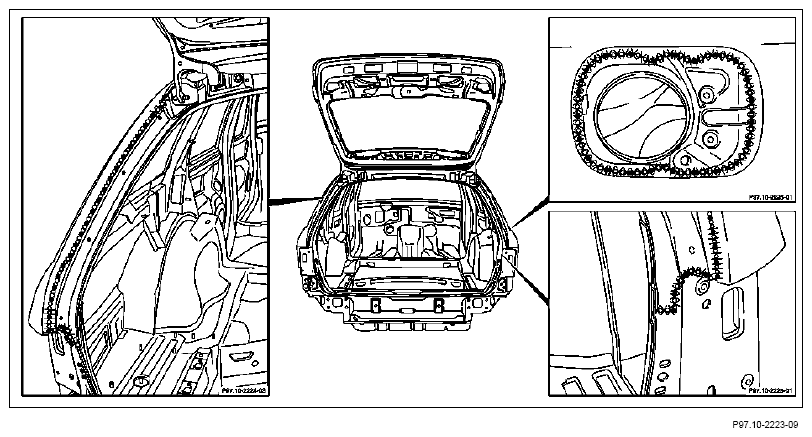

Rear fender and tank recess area

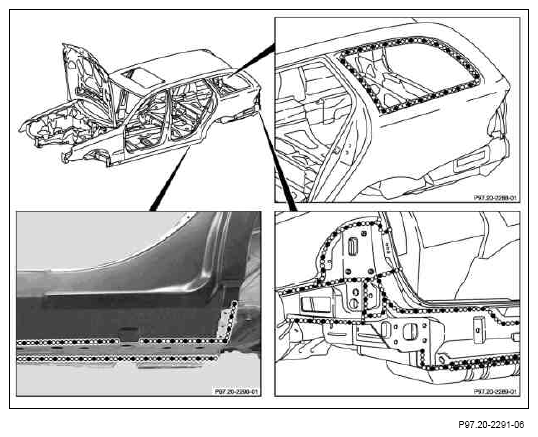

Rear fender area

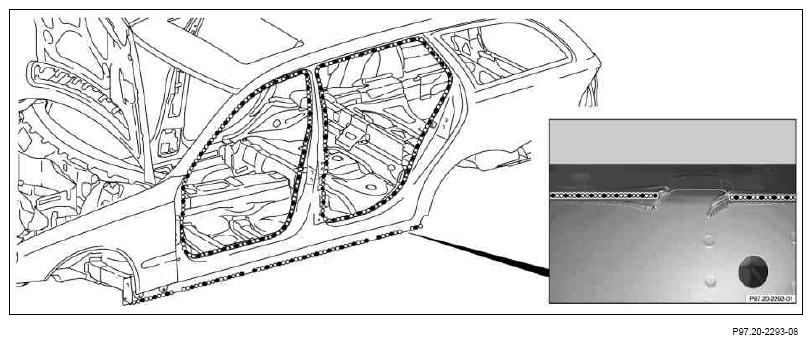

Side longitudinal member and left rear and front entry area

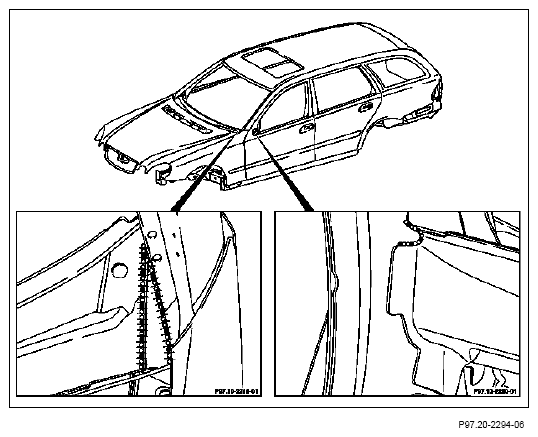

Inner and outer A-pillar area

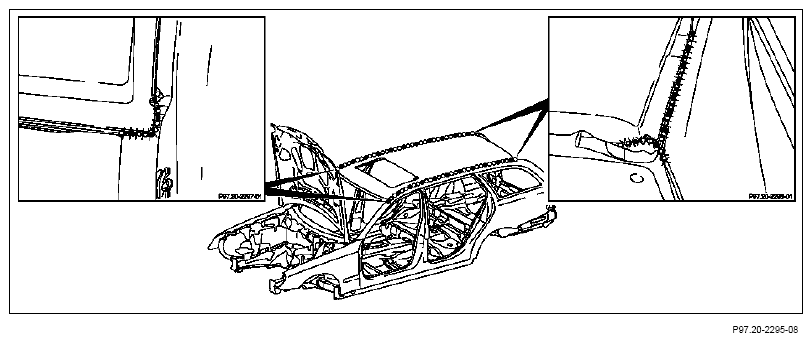

Center roof paneling to side roof paneling area

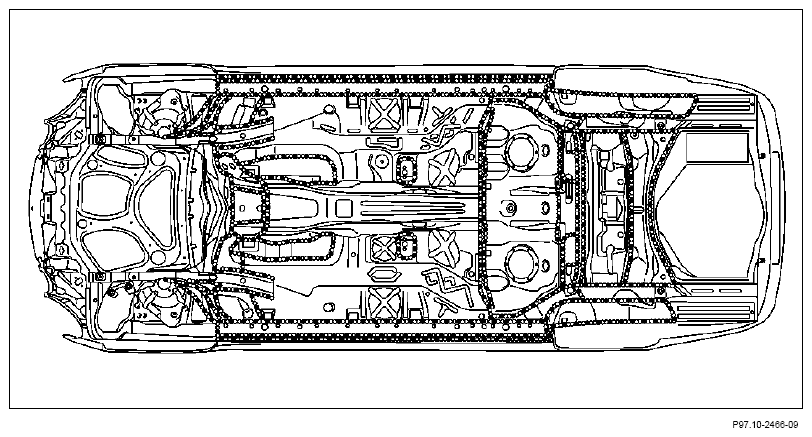

Overall underfloor area
