Install speaker wiring harness in headliner - AR68.30-P-4305-07T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1071-02A | Adhesive tape roll, gray Tesa tape, 50 meters 0.3X50, 236 mm | A 001 989 17 85 |

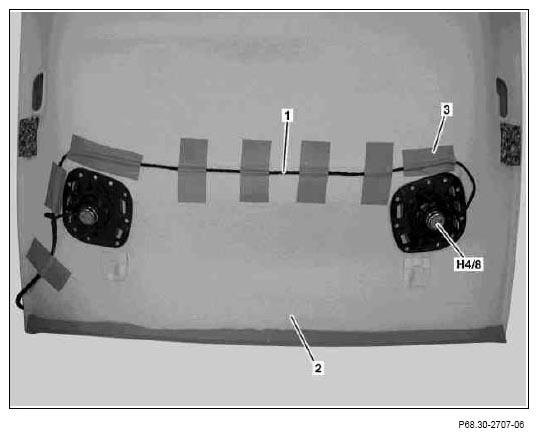

- Route speaker wiring harness (1) in area of right rear speaker (H4/8) with an excess of 10 cm starting at the first adhesive strip (3) as illustrated
The new headliner (2) has a recess for the speaker wiring harness (1). Route speaker wiring harness (1) in this recess.
- Glue speaker wiring harness (1) with approx. 10 cm long strip of adhesive tape at a distance of approx. 5 cm onto new headliner (2).
Press adhesive strips on firmly otherwise the speaker wiring harness (1) can detach itself from the headliner (2).
