Sizes of gaps at hoods, doors and covers - AR60.00-P-0700-01TA
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
TEST VALUES FOR GAPS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 211.2 | |||
|---|---|---|---|---|---|

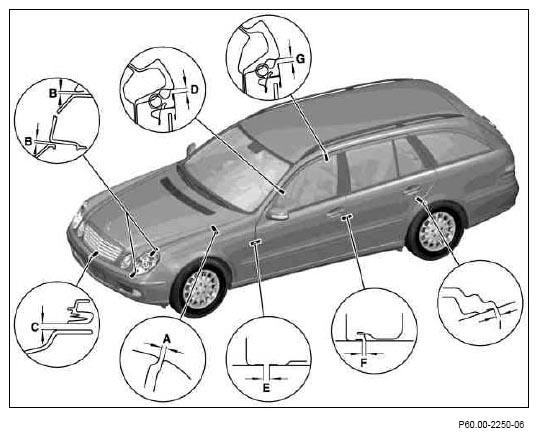

| BE60.00-P-1001-01F | Size of gap | Engine hood/fender | Dimension "A" | mm | 3.5 (±0.5) |
| Engine hood/headlamp | Dimension "B" | mm | 4 (±0.5) | ||
| Radiator grille/bumper | Dimension "C" | mm | 5.5 (±1) | ||
| Fig. see | AR60.00-P-0700-01TA | ||||
| BE60.00-P-1002-01F | Size of gap | Front door/A-pillar | Dimension "D" | mm | 4.5(-0.5/+1) |
| Front door/fender | Dimension "E" | mm | 4 (-0.5/+1) | ||
| Front door/rear door | Dimension "F" | mm | 4 (-0.5/+1) | ||
| Front door/roof | Dimension "G" | mm | 4.5(-0.5/+1) | ||
| Rear door/top side section | Dimension "H" | mm | - | ||
| Rear door/bottom side section | Dimension "I" | mm | 3.5 (-0.5/+1) | ||
| Fig. see | AR60.00-P-0700-01TA | ||||
| BE60.00-P-1003-01F | Size of gap | Trunk lid/top of rear fender | Dimension "J" | mm | - |
| Trunk lid/taillamp | Dimension "K" | mm | - | ||
| Trunk lid/bumper | Dimension "L" | mm | - | ||
| Rear fender/taillamp | Dimension "M" | mm | 2.5 (±1) | ||
| Trunk lid cover/taillamp | Dimension "N" | mm | - | ||
| Fig. see | AR60.00-P-0700-01TA | ||||
| BE60.00-P-1004-01F | Size of gap | Tank flap | Dimension "O" | mm | 3.5 (±0.5) |
| Fig. see | AR60.00-P-0700-01TA | ||||

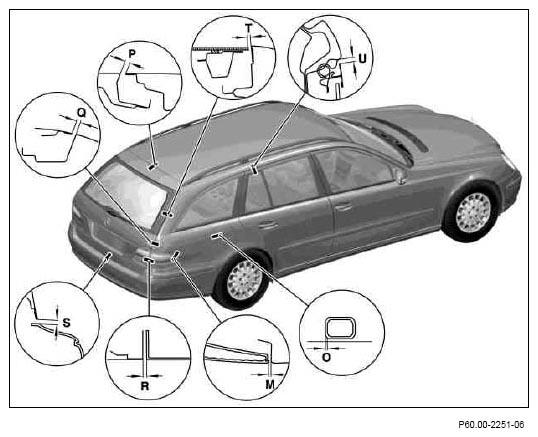

| BE60.00-P-1005-01F | Size of gap | Tailgate spoiler/roof | Dimension "P" | mm | 7(-0.5/+1) |
| Tailgate/rear fender | Dimension "Q" | mm | 4.5 (±1) | ||
| Taillamp in tailgate/taillamp | Dimension "R" | mm | 5 (±1) | ||
| Tailgate/bumper | Dimension "S" | mm | 6 (±1.5) | ||
| Rear window/D-pillar | Dimension "T" | mm | 4.5 (±1) | ||
| Rear door/roof | Dimension "U" | mm | 4.5(-0.5/+1) | ||
| Fig. see | AR60.00-P-0700-01TA | ||||
Adjust hoods, doors and lids as shown in drawing. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.
