Electronic selector lever module control unit, design - GF27.19-P-5138-03P

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.6 in MODEL 203, 209, 211, 219

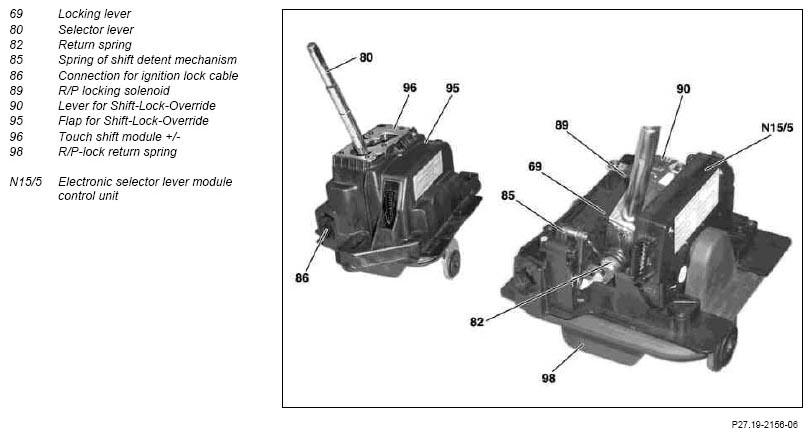

Fig 1: Design Of Electronic Selector Lever Module Control Unit
G07279453Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
