Operating unit, location/task/design/function - GF42.46-P-4200SL
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version
MODEL 211 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version
MODEL 230 up to Model Year 8
MODEL 240

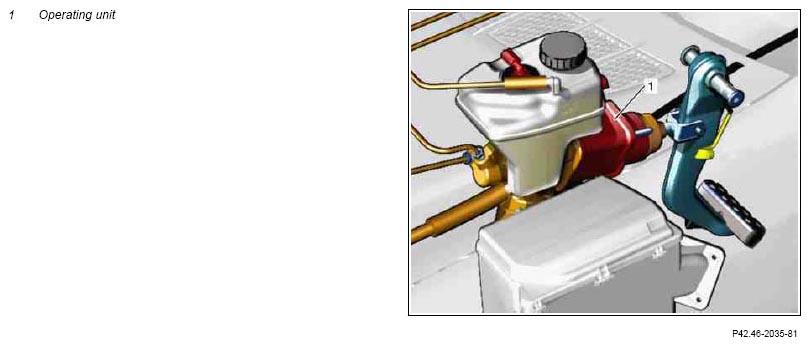

| Operating unit, location | GF42.46-P-4200-01SL | |
| Operating unit, task | To convey to the driver the brake pressure at the brake pedal. Conveys the position of the brake pedal (brake pedal value) to the SBC control unit (A7/3n1) (model 211, 230), SBC left control unit (A7/3n1) and SBC right control unit (A7/4n1) (model 240). Functions as a master brake cylinder if the system fails. |
|
| Operating unit, design | GF42.46-P-4200-02SL | |
| Operating unit, function | Models 211, 230 | GF42.46-P-4200-03SL |
| Model 240 | GF42.46-P-4200-03MB |
