Remove contacts from FIN sensor contact connector - AR00.19-P-0120-13A

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying LSK 8 Blade (220 589 01 99 56)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unfasten secondary release on version with disk

Using a suitable tool, push the disk out of the last detent in direction shown by arrow.

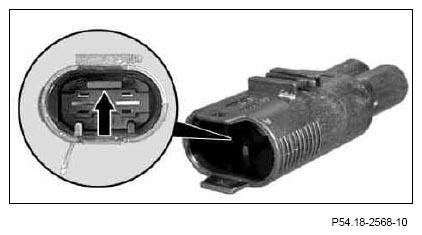

Fig 5: Pushing Disk Out Of Last Detent
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unpin female contacts from connector
Insert blade holder with clamping pliers and LSK 8 blade from front side though openings at contact cavity of connector (1).
This results in the spring shackles (2) of the contact pin being compressed.
A slight tug on the corresponding cable will remove the contact pin from the connector.

Fig 6: Inserting Blade Holder Though Openings At Contact Cavity Of Connector
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
