Remove contacts from standard power timer connector - AR00.19-P-0120-11A

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Wiring Harness Repair Kit Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying JPT/SPT Blade (220 589 01 99 61)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying MCP 2.8/FL Blade. 2.8/JPT/SPT (000 589 13 99 30)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unpin contact pin from connector

1. Insert blade holder with clamping pliers with JPT/SPT blade or MCP 2.8/Fl. 2.8/JPT/SPT blade from front side through openings at contact cavity of connector (1).

   This presses together the spring shackles (2) on the contact pin (3).

2. Pull lightly on the corresponding line to remove the contact pin (3) from the plug (1).

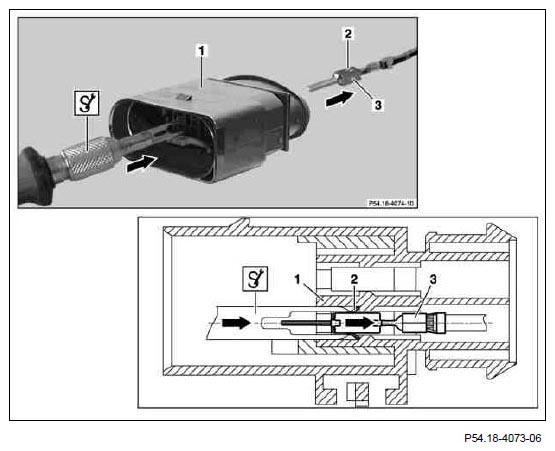

   Fig 6: Removing Contact Pin From Plug

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
