Remove contacts from sensor laminated contact connector - AR00.19-P-0120-01B

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Wiring Harness Repair Kit Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying SLK 2.8 Blade (220 589 01 99 62)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unpin secondary release on version with contact retainer

1. Using a suitable tool, push tabs of contact retainer (1) in direction of arrow out of locked position.

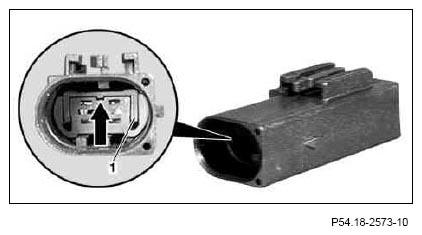

   Fig 5: Locating Tabs Of Contact Retainer

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unpin contact pins from the connector

2. Insert blade holder with clamping pliers and SLK 2.8 blade from front side though openings at contact cavity of connector (1).

   Insert tool carefully to prevent damaging webs at openings of contact cavity.

   This presses together the springs of the contact pin (2).

   Fig 6: Inserting Blade Holder From Front Side Though Openings At Contact Cavity Of Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. A slight tug on the corresponding cable will remove the contact pin from the connector.

   Rocking the contact pin back and forth, thus making use of the full housing tolerance, may help to unpin the contact.
