Remove contacts from FIN sensor contact coupling pt. 1 - AR00.19-P-0120-12A

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Wiring Harness Repair Kit Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying LSK 8 Blade (220 589 01 99 56)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unfasten secondary release on version with spring (shown on laminated sensor contact, Junior Power Timer coupling)

1. Insert a suitable tool between the spring and the housing.
2. Press out the spring.
   Fig 5: Inserting Suitable Tool Between Spring And Housing

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unfasten secondary release on version with slide (shown on laminated sensor contact, Junior Power Timer coupling)

3. Push (1) slider out of locked position in direction of arrow.
   Fig 6: Pushing Slider Out Of Locked Position

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unfasten secondary release on version with pin

4. Using a suitable tool, push pin out of last detent in direction shown by arrow.
   Fig 7: Pushing Pin Out Of Last Detent

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unpin female contacts from coupling

5. Insert blade holder with clamping pliers and LSK 8 blade from front side though openings at contact cavity of coupling (1).

   This step compresses the spring shackles (2) on the female contact.

6. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

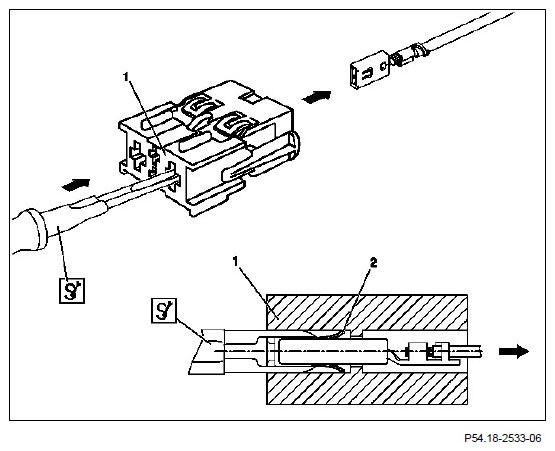

   Fig 8: Inserting Blade Holder From Front Side Though Openings At Contact Cavity Of Coupling
