Overall network (GVN) block diagram - GF00.19-P-0001-03LEA

MODEL 216.3 as of Model Year 2011 /AEJ 10 MOPF MODEL 221.0 /1 as of Model Year 2010 /AEJ 09

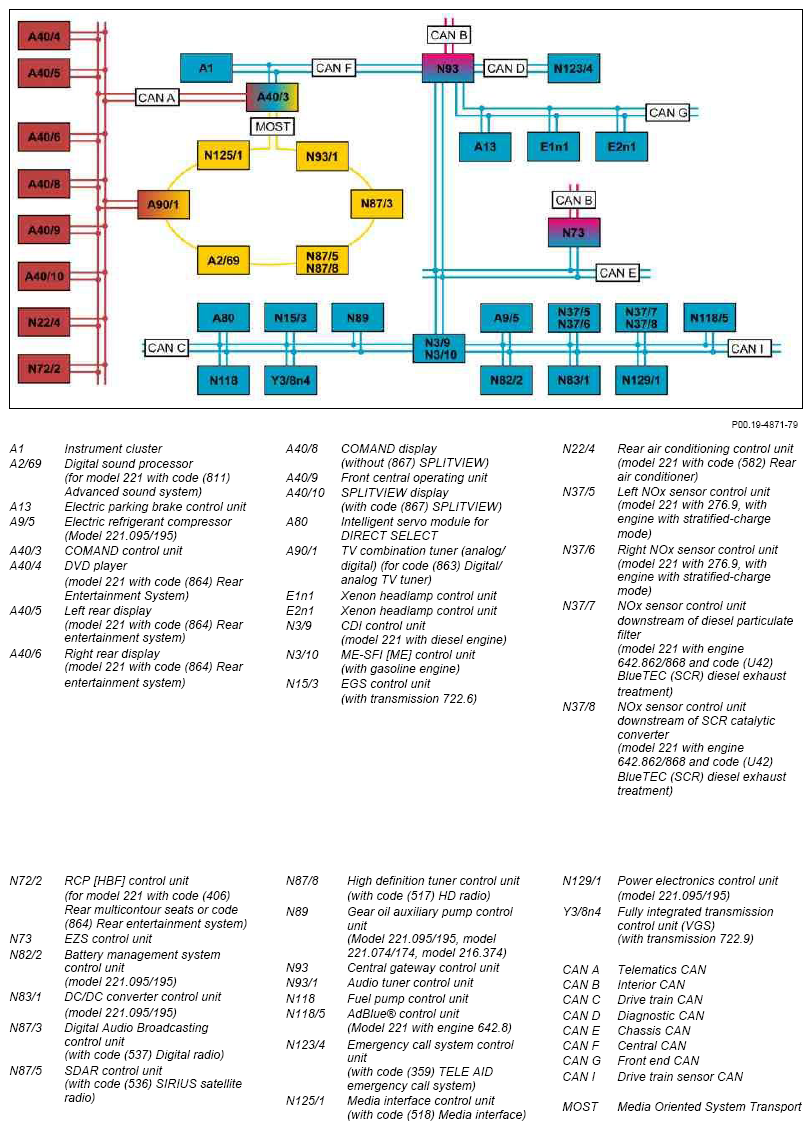

Fig 1: Overall Network Block Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

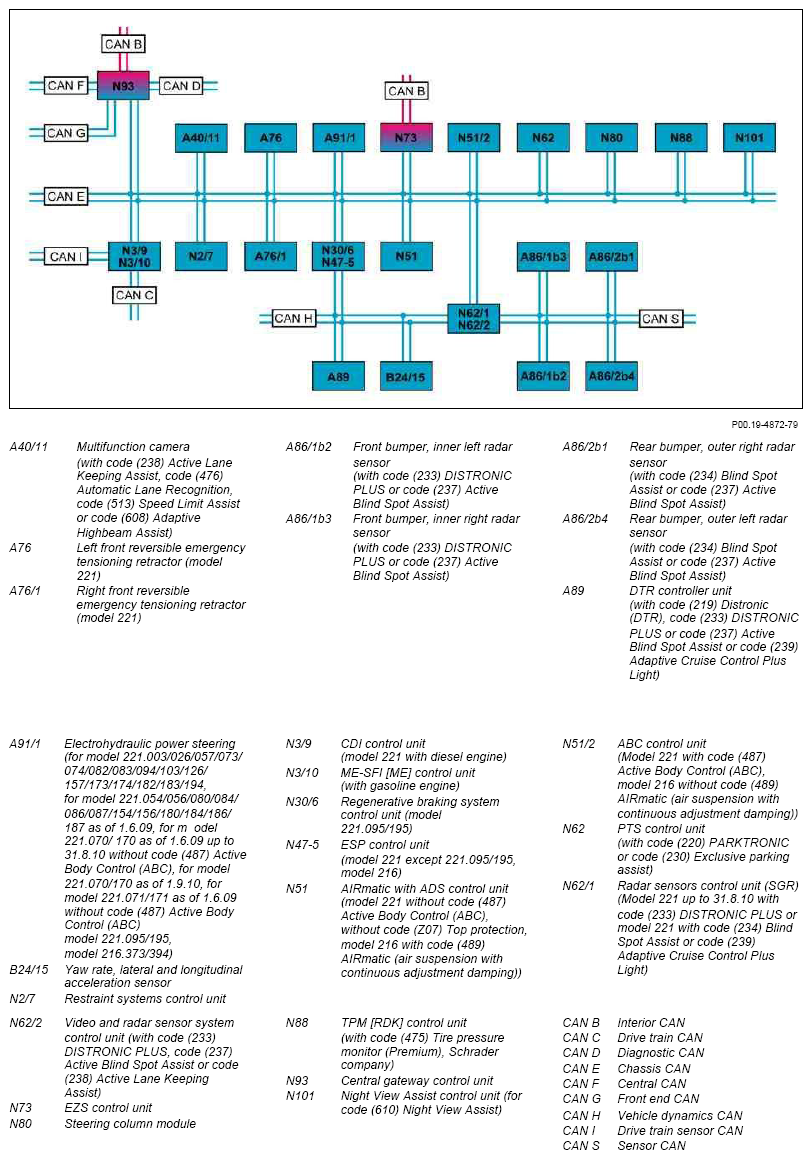

Fig 2: Overall Network Block Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

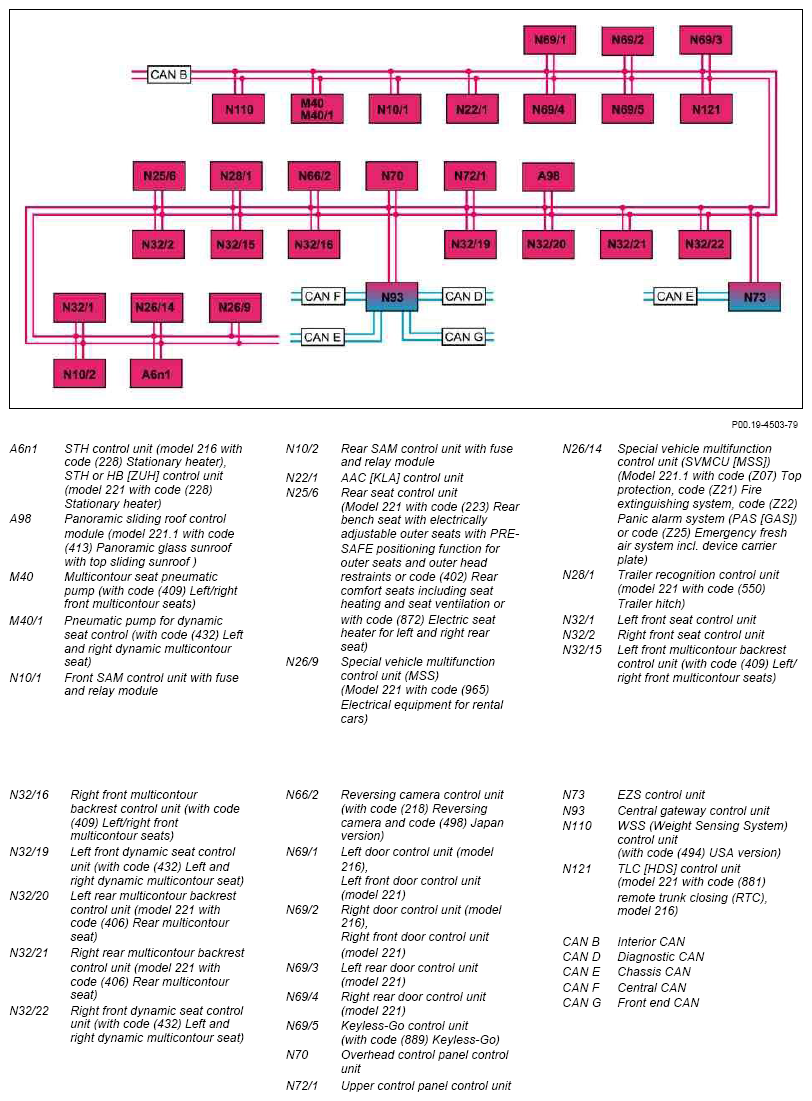

Fig 3: Overall Network Block Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
