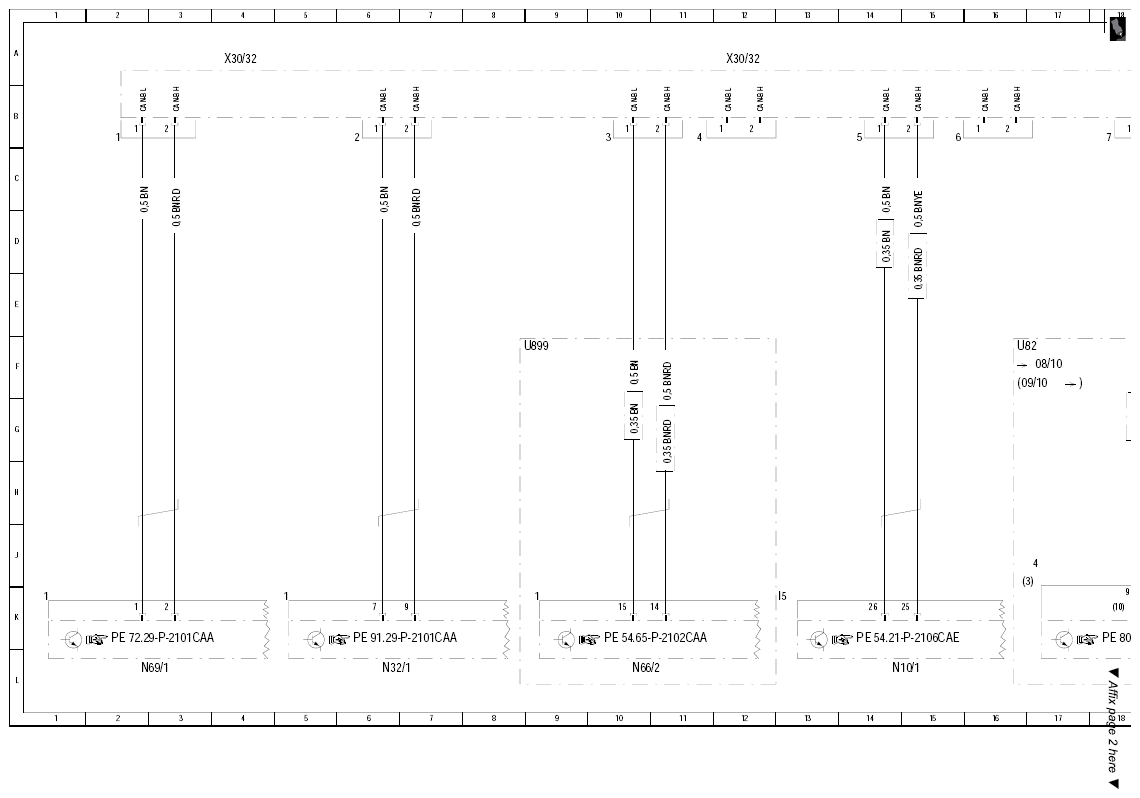

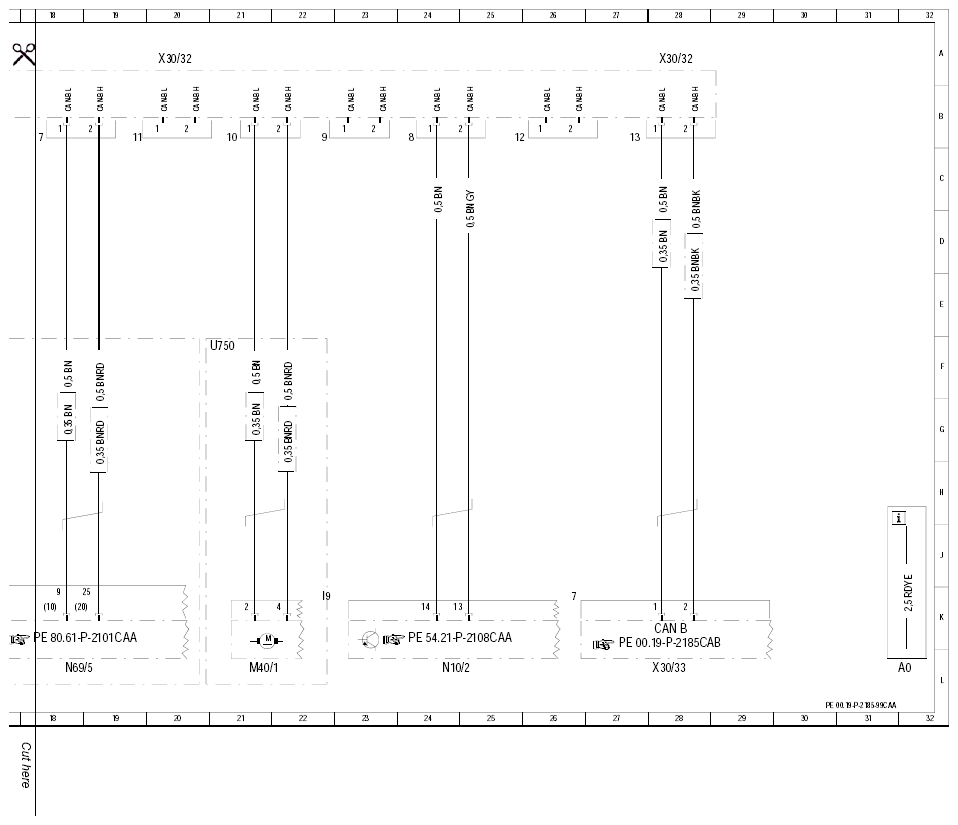

| A0 |
Explanation of color codes |
31 L |
| M40/1 |
Pneumatic pump for dynamic seat control |
21 L |
| N10/1 |
Front SAM control module with fuse and relay module |
14 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
24 L |
| N32/1 |
Left front seat control module |
6 L |
| N66/2 |
Reverse camera control module |
10 L |
| N69/1 |
Left door control module |
2 L |
| N69/5 |
Keyless Go control module |
18 L |
| U750 |
Valid for dynamic seat (DS [FDS]) |
20 G |
| U82 |
Valid for keyless go |
16 G |
| U899 |
Valid for backup camera |
8 G |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
4 A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
12 A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
20 A |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
28 A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
28 L |
