Component description for voice control system (VCS [SBS]) control unit - GF82.70-P-4300LE

MODEL 216, 221 up to 31.5.09 with CODE (813) Voice control system (VCS [SBS]) as of model year 2009 /YoM 08

Shown on model 221

Location

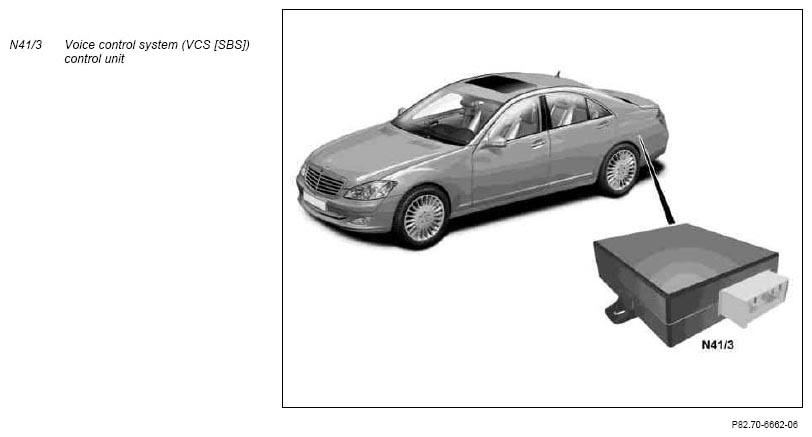

The voice control system control unit (VCS [SBS]) is located in the left rear of the trunk.

Task

The voice control system has the following tasks:

• Reading in of signals
• Processing signals
• Transmitting signals

Reading in of signals

Signals are read in via the following connections:

• Direct line
• Media Oriented System Transport (MOST)

Direct line

The following signals are read in with direct lines:

• Electronic wake-up for MOST
• Voice input signals via 2 microphone inputs from the handsfree system microphone group (A67b1)

MOST

The following signal is read in via LIN:

• Signal for activating or deactivating the voice control system (VCS) from the COMMAND controller unit (A40/3)

Processing signals

The spoken commands are processed internally in the voice control system (VCS [SBS]) control unit.

Transmitting signals

Signals are sent through the following connection:

• MOST

MOST

The following signals are sent via MOST:

• Voice control signals of the telephone, Short Message Service (SMS) and address book communication applications to the UPCI [UHI] (Universal Portable Cell Phone Interface) control unit (N123/1) (with code (386) Preinstallation for telephone "cell phone" UPCI [UHI] system or code (389) Mobile phone preinstallation with universal interface USA/Canada)
• Voice control signals of the audio applications (radio, CD/DVD) to the audio tuner control unit (N93/1)
• Voice control signals of the navigation system to the COMMAND controller unit, (without code (526) COMMAND with single DVD drive (without navigation))

Variants

The following languages are available for the voice control system:

• English
• English
• French
• Italian
• Spanish
• Dutch
