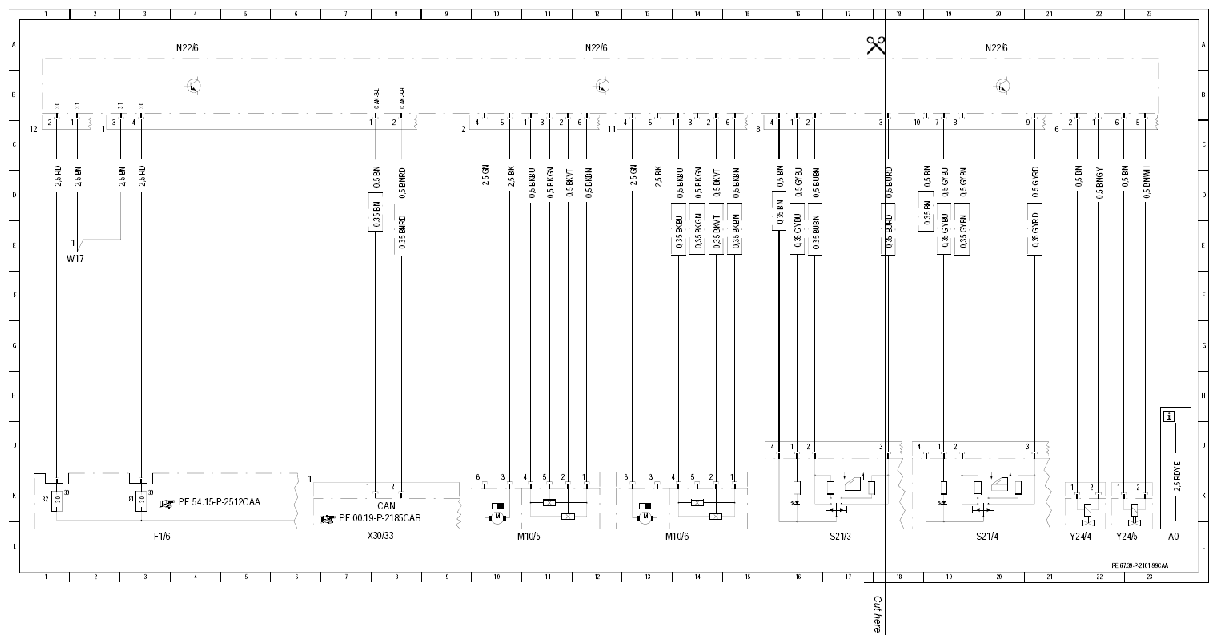

Wiring diagram rear control unit - PE67.39-P-2101-99CAA
MODEL 216.3 Control unit N22/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 23L |
| F1/6 | Right instrument panel fuse box | 3L |
| F1/6f81 | Fuse 81 | 3K |
| F1/6f82 | Fuse 82 | 1K |
| M10/5 | Left rear power window motor | 10L |
| M10/6 | Right rear power window motor | 13L |
| N22/6 | Rear control module | 4A |
| N22/6 | Rear control module | 12A |
| N22/6 | Rear control module | 20A |
| S21/3 | Left rear power window switch | 17L |
| S21/4 | Right rear power window switch | 20L |
| W17 | Ground (right rear seat) | 1E |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 7L |
| Y24/4 | Left head restraint raise valve | 21L |
| Y24/5 | Right head restraint raise valve | 22L |
