| A45 |
Fanfare horns and airbag clock spring contact |
16J |
| N2/7 |
Restraint systems control unit |
4A |
| N2/7 |
Restraint systems control unit |
12A |
| N2/7 |
Restraint systems control unit |
20A |
| N80 |
Steering column module |
16L |
| R12/11 |
Left rear sidebag squib |
8L |
| R12/12 |
Right rear sidebag squib |
9L |
| R12/13 |
Driver airbag ignition squib 1 |
19L |

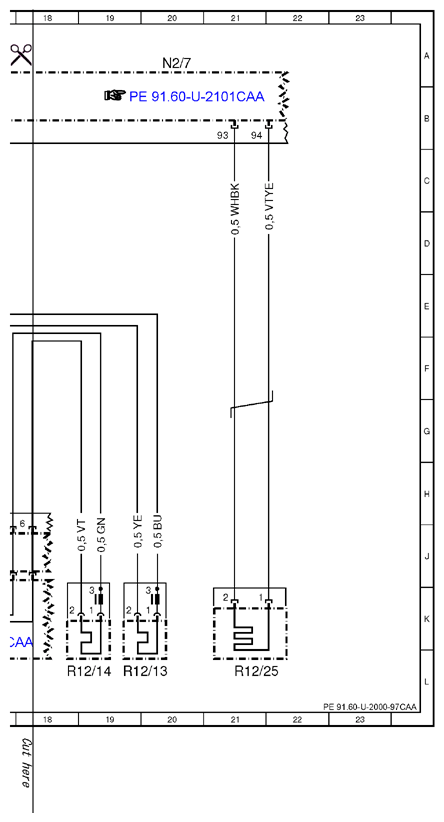

| R12/14 |
Driver airbag ignition squib 2 |
18L |
| R12/20 |
Left front sidebag squib |
5L |
| R12/21 |
Right front sidebag squib |
6L |

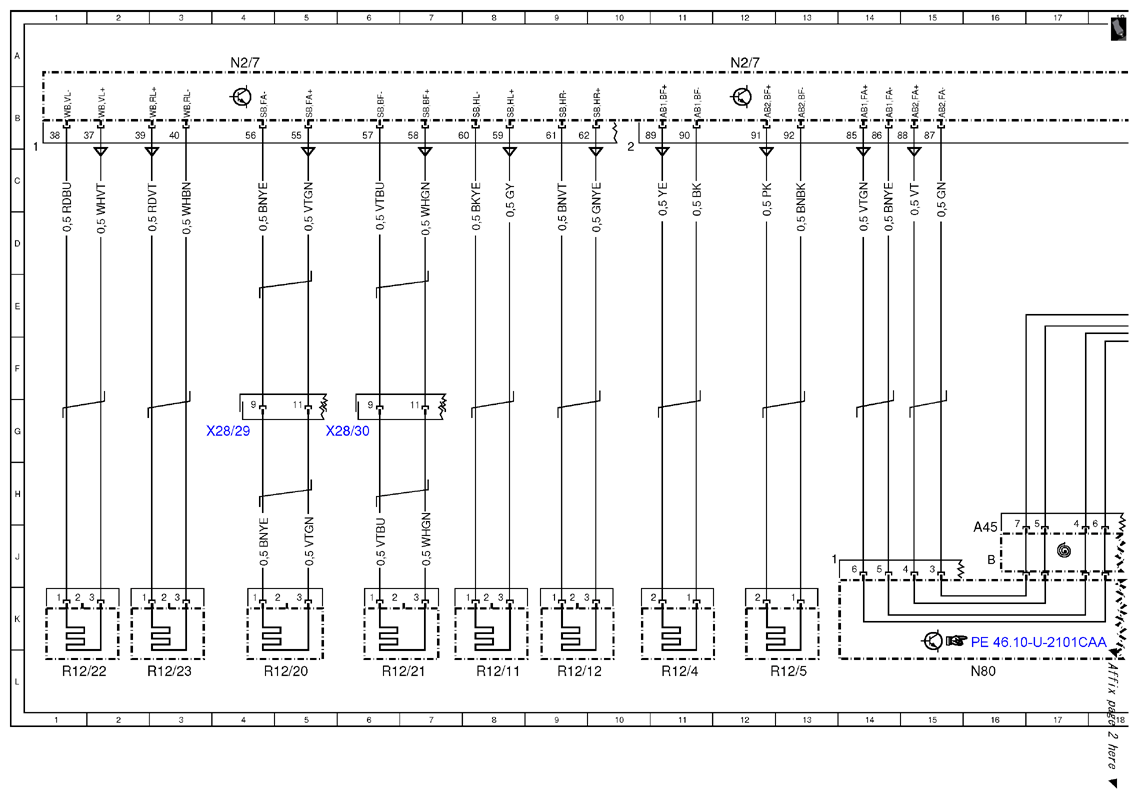

| R12/22 |
Left rear windowbag squib |
1L |
| R12/23 |
Right rear windowbag squib |
3L |
| R12/25 |
Driver kneebag squib |
21L |
| R12/4 |
Front passenger airbag squib 1 |
11L |
| R12/5 |
Front passenger airbag squib 2 |
13L |
| X28/29 |
Driver-side FFS [RBA]/seat airbag separation point |
4G |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
6G |
