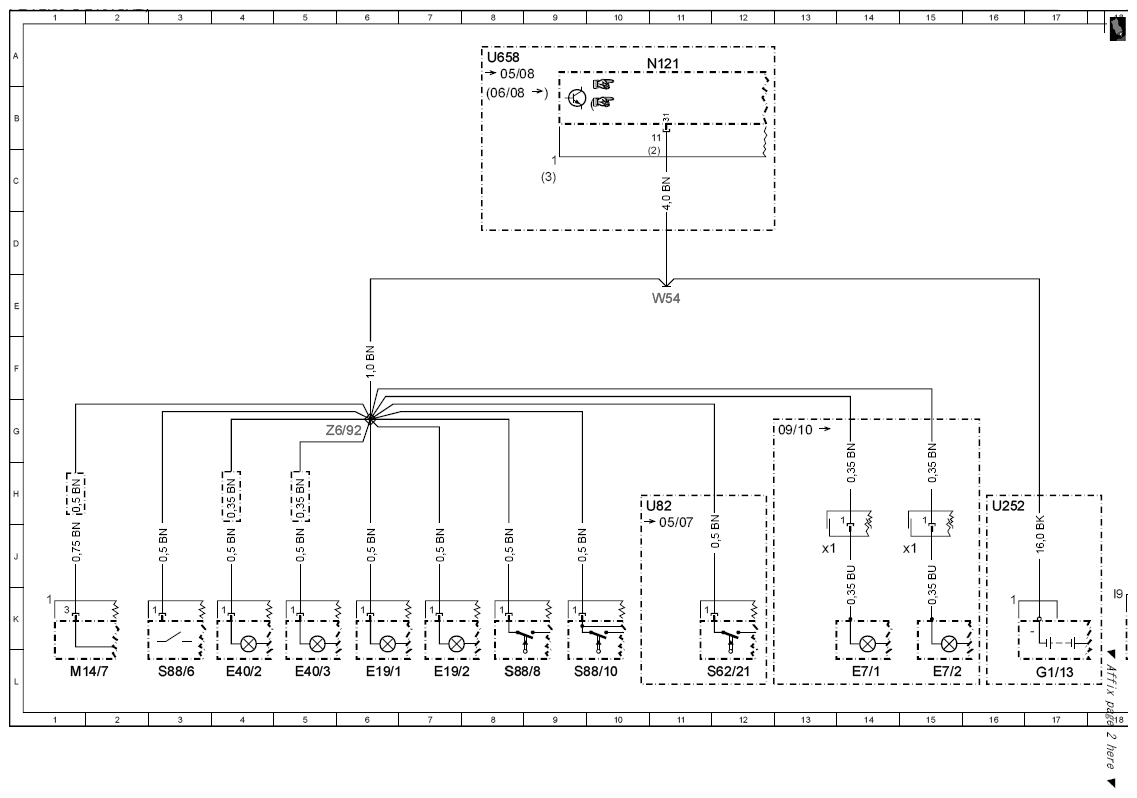

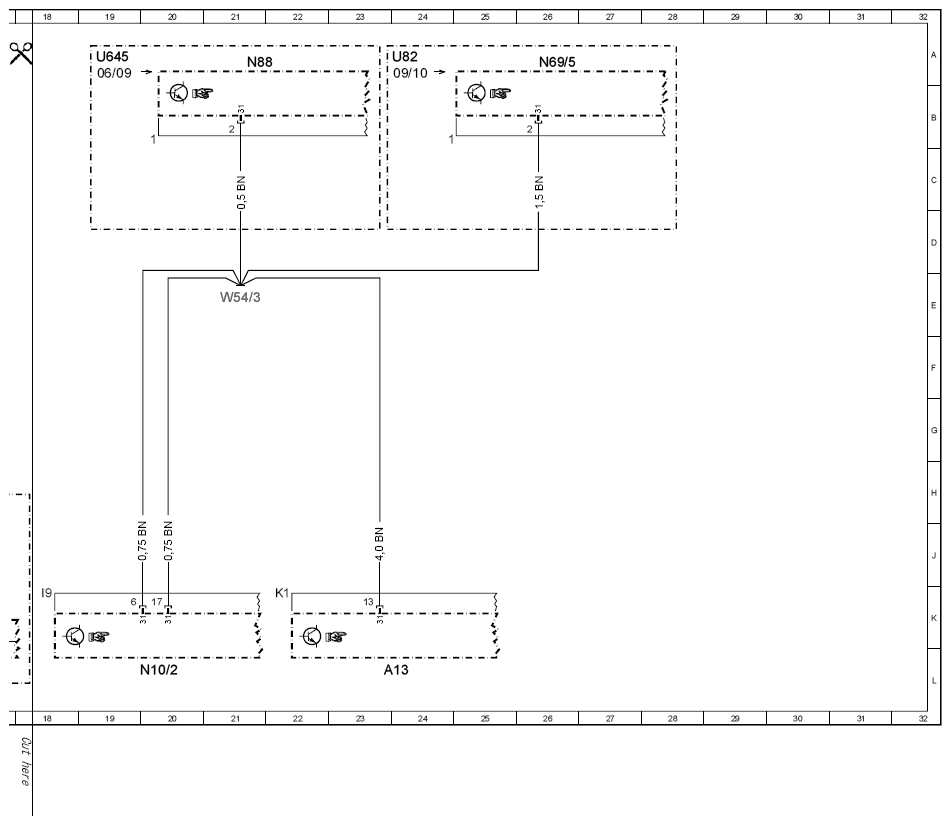

| A13 |
Electric parking brake control unit |
23L |
| E19/1 |
Left license plate lamp |
6L |
| E19/2 |
Right license plate lamp |
7L |
| E40/2 |
Left trunk lid ambient and warning lamp |
4L |
| E40/3 |
Right trunk lid ambient and warning lamp |
5L |
| E7/1 |
Left backup lamp |
14L |
| E7/1x1 |
Left backup lamp connector |
13J |
| E7/2 |
Right backup lamp |
15L |
| E7/2x1 |
Right backup lamp connector |
15J |
| G1/13 |
ECO start/stop function additional battery |
17L |
| M14/7 |
Trunk lid CL [ZV] motor |
1L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20L |
| N121 |
TLC [HDS] control unit |
11A |
| N69/5 |
KEYLESS-GO control unit |
26A |
| N88 |
TPM [RDK] control unit |
21A |
| S62/21 |
Trunk lid KEYLESS-GO button |
12L |
| S88/10 |
Trunk lid emergency release switch |
9L |
| S88/6 |
Trunk lid contact switch |
3L |
| S88/8 |
Trunk lid external operation switch |
8L |
| U252 |
Valid for ECO start/stop function |
16H |
| U645 |
Valid for tire pressure monitor system |
19A |
| U658 |
Valid for remote trunk closing |
8A |
| U82 |
Valid for KEYLESS GO |
10H |
| U82 |
Valid for KEYLESS GO |
24A |
| W54 |
Ground (right rear wheelhouse) |
11E |
| W54/3 |
Ground (left rear wheelhouse) |
21E |
| Z6/92 |
Trunk lid ground connector sleeve |
6G |
