Electrical function diagram for ME transmission shift delay - PE07.61-U-2775-97CAA

Code:	Designation:	Position:
1	Vehicle speed, signal	5G
2	Shift point, increase request	5C
B11/4	Coolant temperature sensor	1E
CAN C	Drive train CAN	4D
CAN E	Chassis CAN	4H
N15/3	ETC [EGS] control unit	4B
N3/10	ME-SFI [ME] control unit	4E
N47-5	ESP control unit	4J

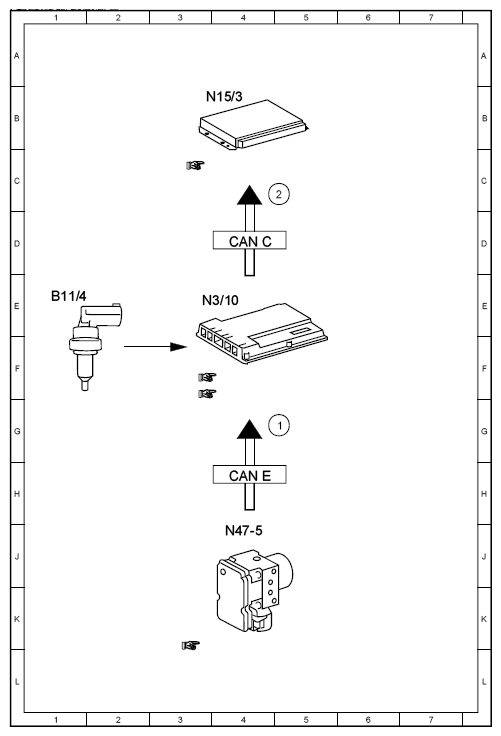

Fig 1: ME Transmission Shift Delay Electrical Function Diagram

Courtesy of MERCEDES-BENZ USA
