Electrical function diagram for ME smooth running evaluation - PE07.61-U-2770-97CAA

Code: Designation: Position:
1 Fuel level, signal 7F
1 Fuel level, signal 10D
1 Fuel level, signal 11B
2 Wheel speed, signal 7H
A1 Instrument cluster 9B
B11/4 Coolant temperature sensor 3H
B17/8 Charge air temperature sensor 7J
B28/7 Pressure sensor downstream of throttle valve actuator 4C
B37 Accelerator pedal sensor 3C
B4/1 Left fuel level sensor 14E
B4/2 Right fuel level sensor 14E
B6/3 Camshaft Hall sensor, right cylinder bank 3J
CAN B Interior CAN 12B
CAN E Chassis CAN 8G
CAN E Chassis CAN 8G
CAN F Central CAN 9D
L5 Crankshaft position sensor 5K
N10/2 Rear SAM control unit with fuse and relay module 15A
N3/10 ME-SFI [ME] control unit 4F
N47-5 ESP control unit 9J
N93 Central gateway control unit 9E
Y62y1 Cylinder 1 fuel injection valve 1E
Y62y10 Cylinder 10 fuel injection valve 1H
Y62y11 Cylinder 11 fuel injection valve 1H
Y62y12 Cylinder 12 fuel injection valve 1H
Y62y2 Cylinder 2 fuel injection valve 1F
Y62y3 Cylinder 3 fuel injection valve 1F
Y62y4 Cylinder 4 fuel injection valve 1F
Y62y5 Cylinder 5 fuel injection valve 1F
Y62y6 Cylinder 6 fuel injection valve 1G
Y62y7 Cylinder 7 fuel injection valve 1G
Y62y8 Cylinder 8 fuel injection valve 1G
Y62y9 Cylinder 9 fuel injection valve 1G

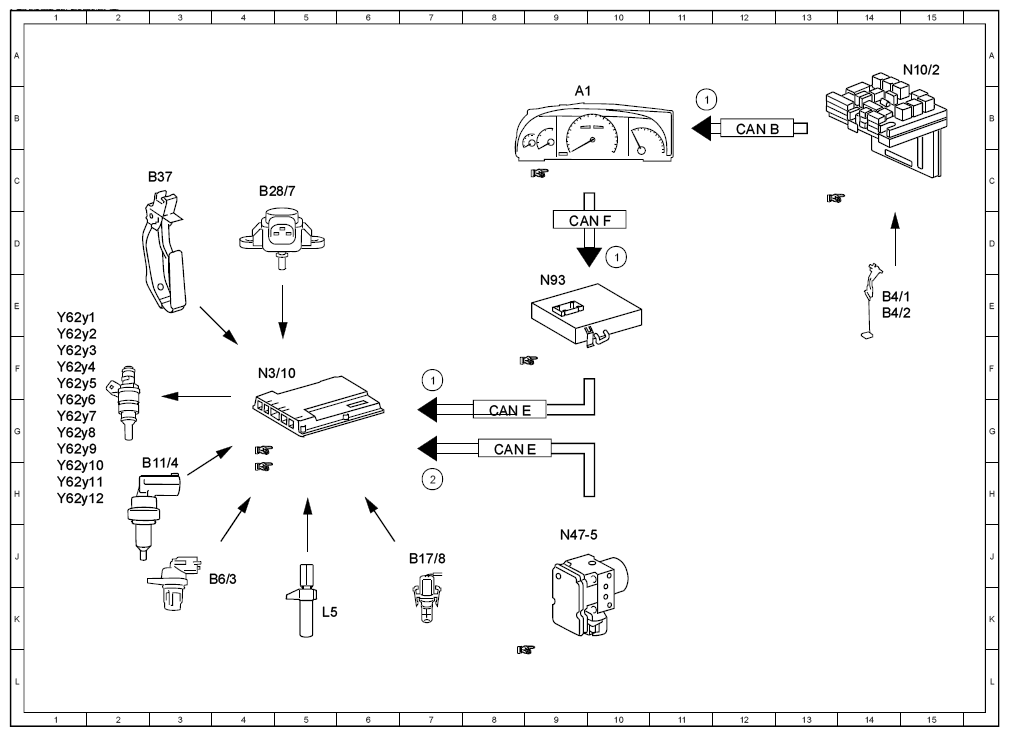

Fig 1: ME Smooth Running Evaluation Electrical Function Diagram
G10107943Courtesy of MERCEDES-BENZ USA
