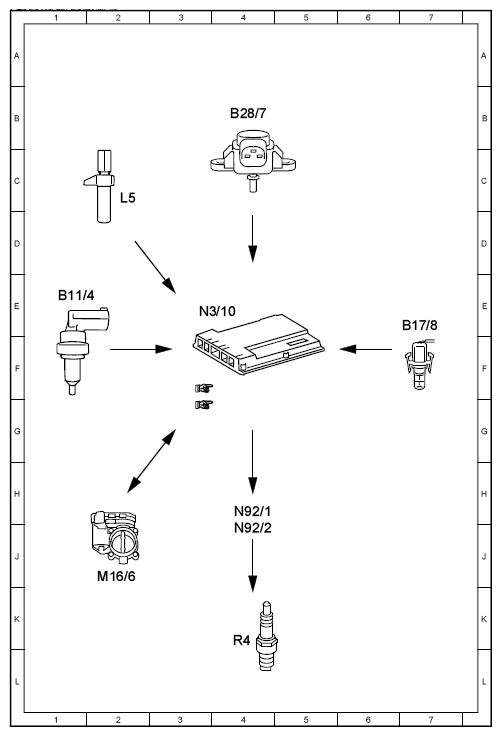

Electrical function diagram for ME overheating/knock protection function - PE07.61-U-2777-97CAA
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 1E |
| B17/8 | Charge air temperature sensor | 7E |
| B28/7 | Pressure sensor downstream of throttle valve actuator | 4B |
| L5 | Crankshaft position sensor | 2C |
| M16/6 | Throttle valve actuator | 2J |
| N3/10 | ME-SFI [ME] control unit | 3E |
| N92/1 | ECI ignition module, right cylinder bank | 4H |
| N92/2 | ECI ignition module, left cylinder bank | 4J |
| R4 | Spark plugs | 4K |
