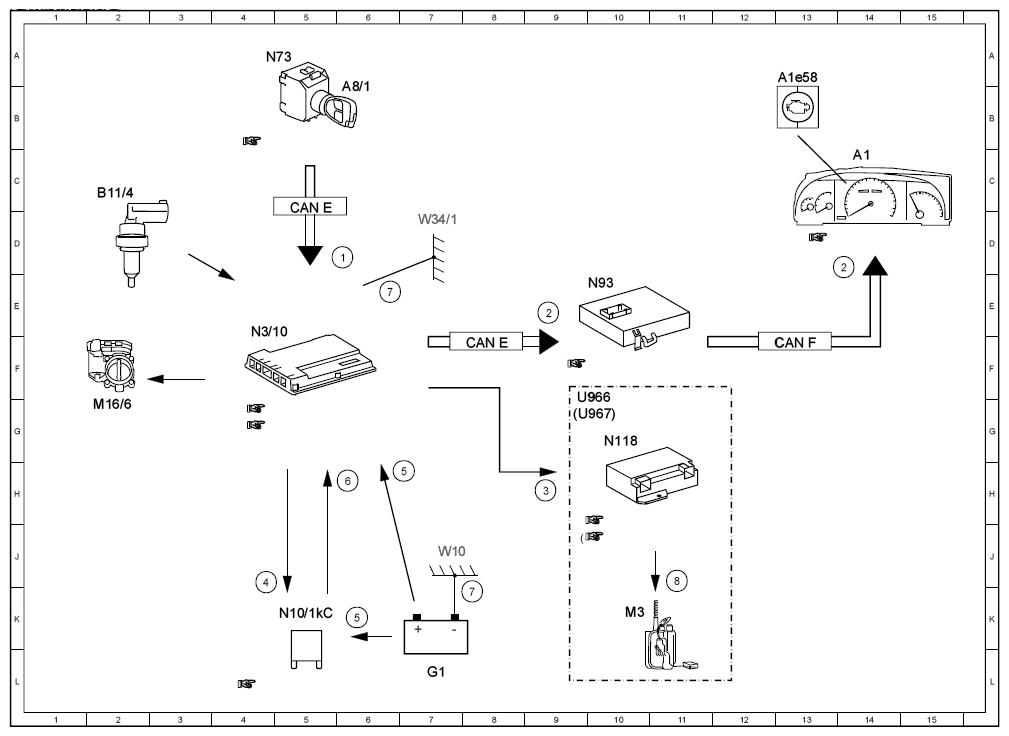

| 1 |
Circuit 15, status ON |
6D |
| 2 |
Engine diagnosis indicator lamp, actuation |
14D |
| 2 |
Engine diagnosis indicator lamp, actuation |
9E |
| 3 |
Fuel pump, request ON |
9H |
| 4 |
Engine circuit 87 relay, actuation |
4J |
| 5 |
Circuit 30, status |
6K |
| 5 |
Circuit 30, status |
7H |
| 6 |
Circuit 87, status |
6H |
| 7 |
Circuit 31, status |
8K |
| 7 |
Circuit 31, status |
6E |
| 8 |
Fuel pump, actuation |
11J |
| A1 |
Instrument cluster |
14C |
| A1e58 |
Engine diagnosis indicator lamp |
13A |
| A8/1 |
Transmitter key |
6B |
| B11/4 |
Coolant temperature sensor |
2C |
| CAN E |
Chassis CAN |
8F |
| CAN E |
Chassis CAN |
5D |
| CAN F |
Central CAN |
13F |
| G1 |
On-board electrical system battery |
7L |
| M16/6 |
Throttle valve actuator |
2G |
| M3 |
Fuel pump (FP) |
10K |
| N10/1kC |
Circuit 87 relay, engine |
5K |
| N118 |
Fuel pump control unit |
10G |
| N3/10 |
ME-SFI [ME] control unit |
4E |
| N73 |
EIS [EZS] control unit |
4A |
| N93 |
Central gateway control unit |
10E |
| U966 |
Valid for engine 275.953 |
9G |
| U967 |
Valid for engine 275.982 |
9G |
| W10 |
Ground (battery) |
7J |
| W34/1 |
Ground (electronics - left footwell) |
7D |
