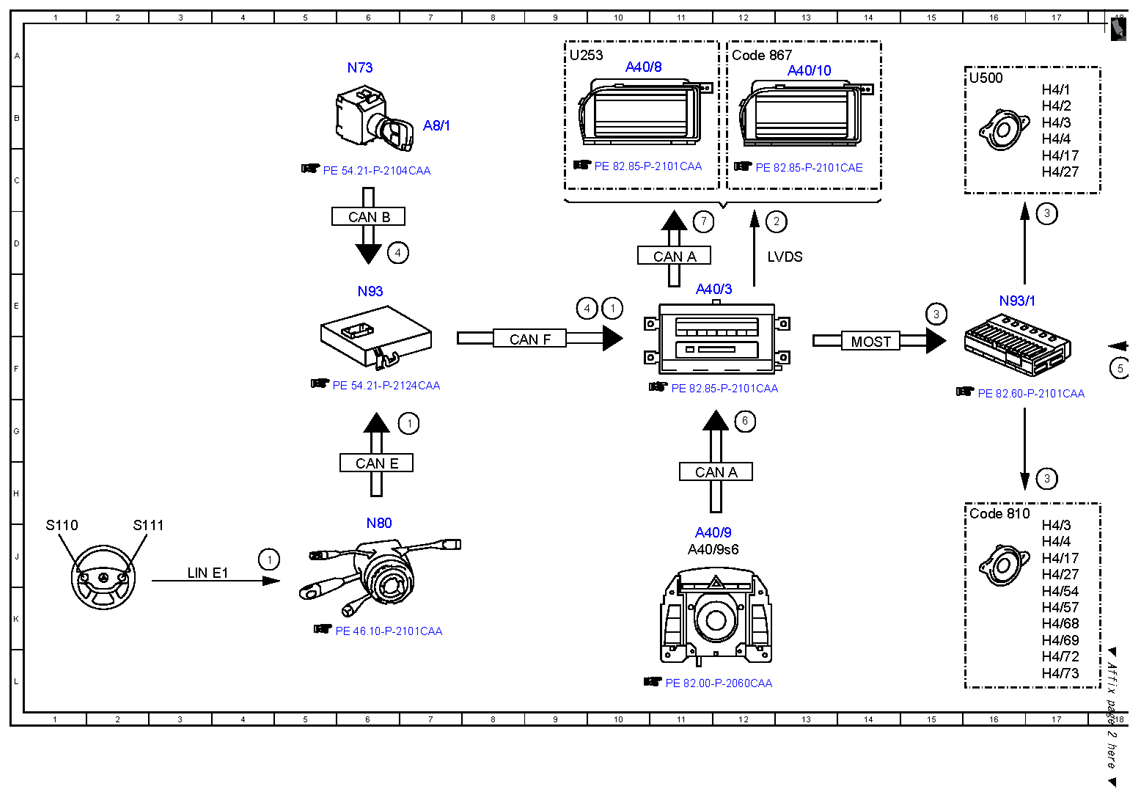

Electrical function diagram for audio mode, function - PE82.60-P-2058-97CAA
MODEL 216 with CODE (526) COMAND with single DVD drive (without navigation) with CODE (527) COMAND APS with single DVD drive (with navigation) as of model year 2009 /YoM 08
MODEL 216 up to 31.5.09 with CODE (530) COMAND APS USA (with navigation) as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 7G |
| 1 | Multifunction steering wheel button group, signal | 4J |
| 1 | Multifunction steering wheel button group, signal | 10E |
| 2 | Volume display, actuation | 12D |
| 3 | Speaker, actuation | 15E |
| 3 | Speaker, actuation | 17D |
| 3 | Speaker, actuation | 17H |
| 4 | Circuit 15R/circuit 15, status ON | 6D |
| 4 | Circuit 15R/circuit 15, status ON | 9E |
| 5 | AM/FM antenna, signal | 18F |
| 6 | Front central operating unit, signal | 12G |
| 7 | Switch-on request, signal | 11D |
| A2/12 | Rear window antenna amplifier module | 20E |
| A40/10 | SPLITVIEW display | 13A |
| A40/3 | COMAND control unit | 11E |
| A40/8 | COMAND display | 10A |
| A40/9 | Front central operating unit | 11J |
| A40/9s6 | Button "ON" | 11J |
| A8/1 | Transmitter key | 7B |
| CAN A | Telematics CAN | 11D |
| CAN A | Telematics CAN | 11H |
| CAN B | Interior CAN | 6D |
| CAN E | Chassis CAN | 6H |
| CAN F | Central CAN | 8F |
| Code 810 | Sound system | 16H |
| Code 867 | SPLITVIEW | 12A |
| H4/1 | Left door speaker group | 17B |
| H4/17 | Bass module speaker | 17C |
| H4/17 | Bass module speaker | 17J |
| H4/2 | Right door speaker group | 17B |
| H4/27 | Center cockpit speaker (centerfill) | 17C |
| H4/27 | Center cockpit speaker (centerfill) | 17J |
| H4/3 | Left door rear speaker | 17B |
| H4/3 | Left door rear speaker | 17J |
| H4/4 | Right door rear speaker | 17B |
| H4/4 | Right door rear speaker | 17J |
| H4/54 | Left rear surround speaker | 17K |
| H4/57 | Right rear surround speaker | 17K |
| H4/68 | Left door Sound tweeter | 17K |
| H4/69 | Right door Sound tweeter | 17K |
| H4/72 | Left door Sound woofer and midrange speaker group | 17L |
| H4/73 | Right door Sound woofer and midrange speaker group | 17L |
| LIN E1 | Steering LIN | 3J |
| LVDS | Low voltage differential signal | 13D |
| MOST | Media Oriented System Transport | 14F |
| N73 | EIS [EZS] control unit | 6A |
| N80 | Steering column module | 6J |
| N93 | Central gateway control unit | 6E |
| N93/1 | Audio tuner control unit | 16E |
| S110 | Left multifunction steering wheel button group | 1J |
| S111 | Right multifunction steering wheel button group | 2J |
| U253 | Not valid for SPLITVIEW display | 9A |
| U500 | Not valid for Sound System | 16A |
