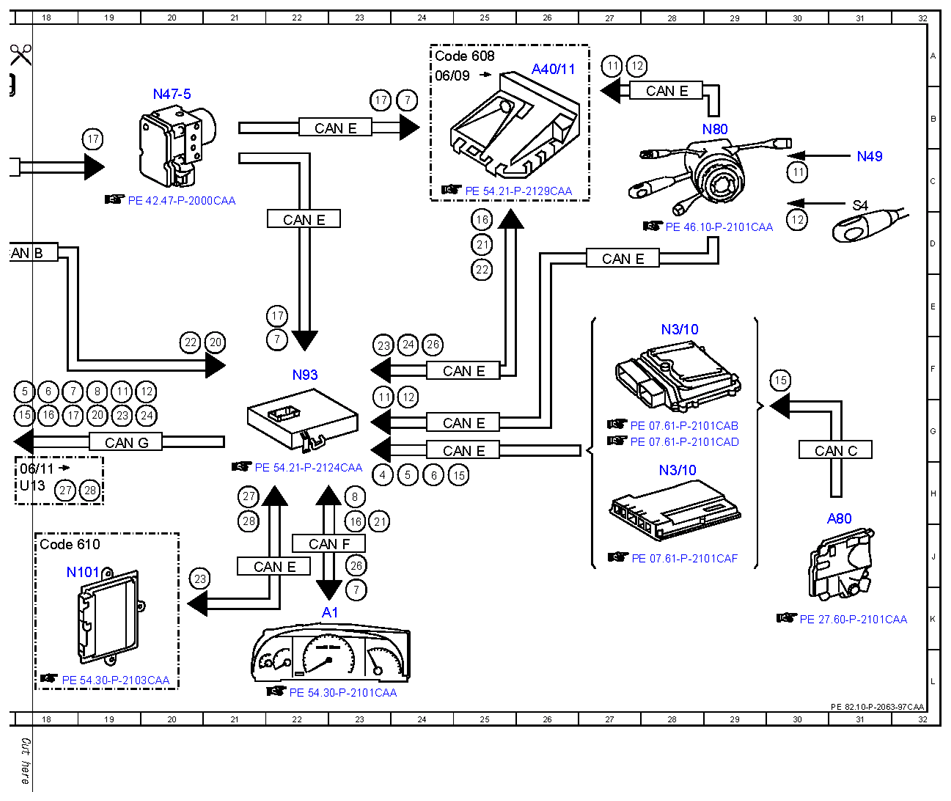

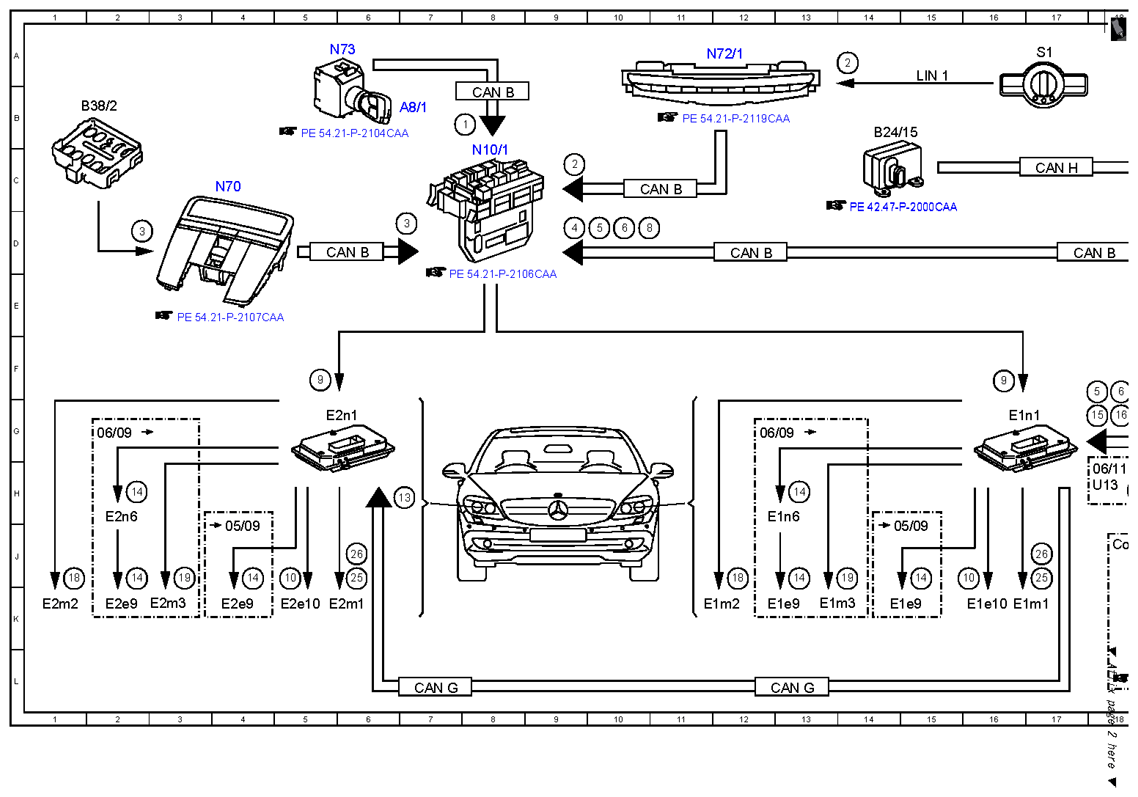

Electrical function schematic, additional functions, driving lights actuation - PE82.10-P-2063-97CAA
MODEL 216.3 as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8B |
| 10 | Bi-xenon lamp with integrated ignition module, actuation | 5J |
| 10 | Bi-xenon lamp with integrated ignition module, actuation | 16J |
| 11 | Steering angle sensor, signal | 30C |
| 11 | Steering angle sensor, signal | 23G |
| 11 | Steering angle sensor, signal | 27A |
| 11 | Steering angle sensor, signal | 19F |
| 12 | Combination switch, status | 30D |
| 12 | Combination switch, status | 24G |
| 12 | Combination switch, status | 27A |
| 12 | Combination switch, status | 20G |
| 13 | Synchronization, signal | 7H |
| 14 | Cornering illumination, actuation | 4J |
| 14 | Cornering illumination, actuation | 13J |
| 14 | Cornering illumination, actuation | 2J |
| 14 | Cornering illumination, actuation | 15J |
| 14 | Cornering illumination, actuation | 2H |
| 14 | Cornering illumination, actuation | 13H |
| 15 | Selector lever position, status | 30F |
| 15 | Selector lever position, status | 25H |
| 15 | Selector lever position, status | 18G |
| 16 | Intelligent Light System, status | 23J |
| 16 | Intelligent Light System, status | 25D |
| 16 | Intelligent Light System, status | 18G |
| 17 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 23B |
| 17 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 22E |
| 17 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 18G |
| 17 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 19C |
| 18 | Dynamic curve illumination motor, actuation | 12J |
| 18 | Dynamic curve illumination motor, actuation | 1J |
| 19 | Light distribution actuator motor, actuation | 3J |
| 19 | Light distribution actuator motor, actuation | 14J |
| 2 | Rotary light switch, status | 14A |
| 2 | Rotary light switch, status | 9C |
| 20 | Rear fog light, actuation | 21F |
| 20 | Rear fog light, actuation | 19G |
| 21 | Automatic high beams, request | 23J |
| 21 | Automatic high beams, request | 25D |
| 22 | High beams, status | 25E |
| 22 | High beams, status | 21F |
| 23 | Light source detection status | 23F |
| 23 | Light source detection status | 20J |
| 23 | Light source detection status | 19G |
| 24 | Automatic high beams, actuation | 20G |
| 24 | Automatic high beams, actuation | 24F |
| 25 | Headlamp range adjustment motor, actuation | 17J |
| 25 | Headlamp range adjustment motor, actuation | 6J |
| 26 | Automatic high beams, status | 23J |
| 26 | Automatic high beams, status | 17J |
| 26 | Automatic high beams, status | 6J |
| 26 | Automatic high beams, status | 24F |
| 27 | Spotlight function, request | 21H |
| 27 | Spotlight function, request | 18H |
| 28 | Spotlight function object information, data packet | 21J |
| 28 | Spotlight function object information, data packet | 19H |
| 3 | Rain/light sensor, status | 2D |
| 3 | Rain/light sensor, status | 7D |
| 4 | Engine speed, signal | 23H |
| 4 | Engine speed, signal | 9D |
| 5 | Circuit 61, status | 24H |
| 5 | Circuit 61, status | 18G |
| 5 | Circuit 61, status | 10D |
| 6 | "PT_Rdy", signal | 24H |
| 6 | "PT_Rdy", signal | 18G |
| 6 | "PT_Rdy", signal | 10D |
| 7 | Wheel speed, signal | 23K |
| 7 | Wheel speed, signal | 24B |
| 7 | Wheel speed, signal | 22F |
| 7 | Wheel speed, signal | 19G |
| 8 | Vehicle speed, signal | 23H |
| 8 | Vehicle speed, signal | 19F |
| 8 | Vehicle speed, signal | 11D |
| 9 | Low beams, actuation | 5F |
| 9 | Low beams, actuation | 16F |
| A1 | Instrument cluster | 22K |
| A40/11 | Multifunction camera | 26A |
| A8/1 | Transmitter key | 7B |
| A80 | Intelligent servo module for DIRECT SELECT | 31H |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 14B |
| B38/2 | Rain/light sensor | 2B |
| CAN B | Interior CAN | 17D |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 6D |
| CAN B | Interior CAN | 8B |
| CAN B | Interior CAN | 11C |
| CAN C | Drive train CAN | 30G |
| CAN E | Chassis CAN | 25G |
| CAN E | Chassis CAN | 22D |
| CAN E | Chassis CAN | 27D |
| CAN E | Chassis CAN | 25G |
| CAN E | Chassis CAN | 22B |
| CAN E | Chassis CAN | 25F |
| CAN E | Chassis CAN | 21J |
| CAN E | Chassis CAN | 28B |
| CAN F | Central CAN | 22J |
| CAN G | Front end CAN | 19G |
| CAN G | Front end CAN | 7L |
| CAN G | Front end CAN | 13L |
| CAN H | Vehicle dynamics CAN | 17C |
| Code 608 | Adaptive Highbeam Assist | 24A |
| Code 610 | Night View Assist | 18J |
| E1e10 | Left bi-xenon lamp with integral ignition module | 16K |
| E1e9 | Cornering illumination | 12K |
| E1e9 | Cornering illumination | 14K |
| E1m1 | Left headlamp range adjustment motor | 16K |
| E1m2 | Left dynamic curve illumination motor | 11K |
| E1m3 | Left light distribution actuator motor | 13K |
| E1n1 | Xenon headlamp control unit | 16G |
| E1n6 | Left turn signal and cornering light voltage converter | 12H |
| E2e10 | Right bi-xenon lamp with integral ignition module | 5K |
| E2e9 | Cornering illumination | 4K |
| E2e9 | Cornering illumination | 2K |
| E2m1 | Right headlamp range adjustment motor | 5K |
| E2m2 | Right dynamic curve illumination motor | 1K |
| E2m3 | Right light distribution actuator motor | 3K |
| E2n1 | Xenon headlamp control unit | 5G |
| E2n6 | Right turn signal and cornering light voltage converter | 2H |
| LIN 1 | Instrument panel LIN | 15A |
| N10/1 | Front SAM control unit with fuse and relay module | 8C |
| N101 | Night vision assist control unit | 18J |
| N3/10 | ME-SFI [ME] control unit | 28H |
| N3/10 | ME-SFI [ME] control unit | 28E |
| N47-5 | ESP control unit | 20B |
| N49 | Steering angle sensor | 31C |
| N70 | Overhead control panel control unit | 4C |
| N72/1 | Upper control panel control unit | 12A |
| N73 | EIS [EZS] control unit | 6A |
| N80 | Steering column module | 29B |
| N93 | Central gateway control unit | 22F |
| S1 | Rotary light switch | 17A |
| S4 | Combination switch | 31C |
