Remove/install voice control system control unit - AR82.70-P-0003SC
MODEL 216.3 up to 31.5.09 except CODE (800) Model year 2010
with CODE (390) Linguatronic - British English
with CODE (391) Linguatronic - French
with CODE (392) Linguatronic - Swiss German
with CODE (393) Linguatronic - Italian
with CODE (394) Linguatronic - Spanish
with CODE (395) Linguatronic - Dutch
with CODE (396) Linguatronic - English (US)
with CODE (813) Voice control system (VCS [SBS])
| Remove/install | |||
| 1.1 | Temporarily store basic data of voice control system (VCS [SBS]) control unit (N41/3) in STAR DIAGNOSIS | When replacing the voice control system (VCS [SBS]) control unit (N41/3). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit | ||
| 3 | Remove spare tire well paneling, loosen side paneling in trunk and pivot to side until the voice control system control unit (VCS) (N41/3) is accessible | AR68.30-P-4600SX | |

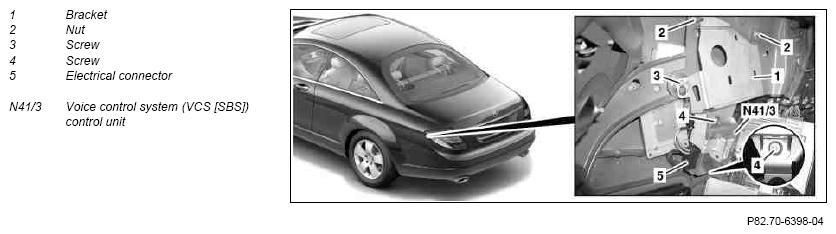

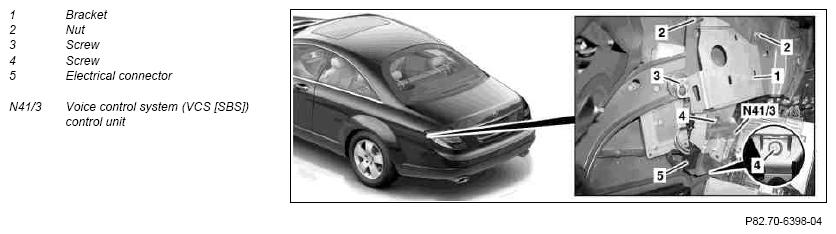

| 4 | Detach nuts (2) and screw/bolt (3), remove bracket (1) and place to one side | ||
| 5 | Disconnect electrical connector (5), unscrew bolts (4) and remove voice control system control unit (VCS) (N41/3) from mount (1) | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 6 | Install in the reverse order |
