Remove/install COMAND APS hard disk - AR82.85-P-1001SX

MODEL 216 with CODE 800 (Model year 2010) except CODE 529 (HIGH Class Japan)

MODEL 216 with CODE 801 (Model year 2011) except CODE 529 (HIGH Class Japan)

MODEL 216 with CODE 802 (Model year 2012) except CODE 529 (HIGH Class Japan)

MODEL 216 with CODE 803 (Model year 2013) except CODE 529 (HIGH Class Japan)

MODEL 221 with CODE 800 (Model year 2010) except CODE 529 (HIGH Class Japan)

MODEL 221 with CODE 801 (Model year 2011) except CODE 529 (HIGH Class Japan)

MODEL 221 with CODE 802 (Model year 2012) except CODE 529 (HIGH Class Japan)

MODEL 221 with CODE 803 (Model year 2013) except CODE 529 (HIGH Class Japan)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect/connect battery ground line		AR54.10-P-0003SX
2	Remove/install cover for control and operating unit	Model 216 with code 800 (Model year 2010) except code 529 (HIGH Class Japan) Model 216 with code 801 (Model year 2011) except code 529 (HIGH Class Japan) Model 216 with code 802 (Model year 2012) except code 529 (HIGH Class Japan) Model 216 with code 803 (Model year 2013) except code 529 (HIGH Class Japan)
		Remove/install cover for control and operating unit	AR68.20-P-2314SC

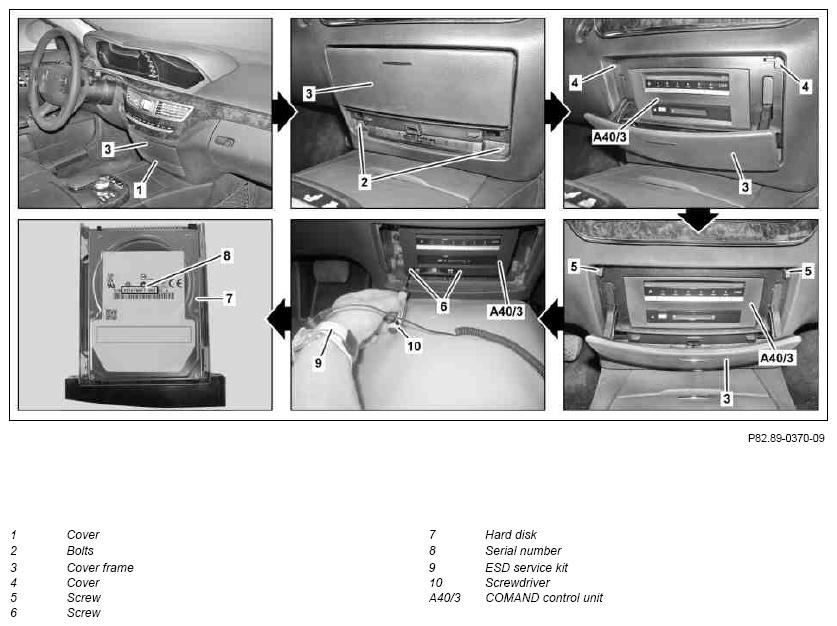

3	Unclip cover (1)	MODEL 221
		Long wedge	Figure
4	Unscrew bolt (2)	MODEL 221
5	Open cover frame (3) and fold up covers (4) of screws/bolts (5) inwards	MODEL 221
6	Remove screws/bolts (5) and close covers (4)	MODEL 221
7	Close cover frame (3) and remove	MODEL 221
8	Apply ESD service kit (9) between vehicle and mechanic as per instructions for potential equalization	ESD kit	Fig 4
9	Remove screw/bolts (6)
10	Pull out hard drive (7) toward front	The serial number of the new hard drive (8) must be documented in the field organization texts in VeDoc.
		Extraction hook	Figure
11	Install in the reverse order
	Check
12	Check map data for navigation system	Model 216, 221 with code 512 (COMAND APS with DVD changer) with code 801 (Model year 2011) except code 529 (HIGH Class Japan) Model 216, 221 with code 512 (COMAND APS with DVD changer) with code 802 (Model year 2012) except code 529 (HIGH Class Japan) Model 216, 221 with code 512 (COMAND APS with DVD changer) with code 803 (Model year 2013) except code 529 (HIGH Class Japan) Model 216, 221 with code 527 (COMAND APS with single DVD drive (with navigation)) with code 801 (Model year 2011) except code 529 (HIGH Class Japan) Model 216, 221 with code 527 (COMAND APS with single DVD drive (with navigation)) with code 802 (Model year 2012) except code 529 (HIGH Class Japan) Model 216, 221 with code 527 (COMAND APS with single DVD drive (with navigation)) with code 803 (Model year 2013) except code 529 (HIGH Class Japan)
	Update map data status for COMAND navigation system		AP82.85-P-8252A
		If the map data is not displayed, the most recently licensed card status must be restored from VeDoc.
13	Clear fault memory
			AD00.00-P-2000-04A
