Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100SX

MODEL 216.3, 221.0/1 with CODE (600) Headlamp cleaning system

Illustrated on model 221

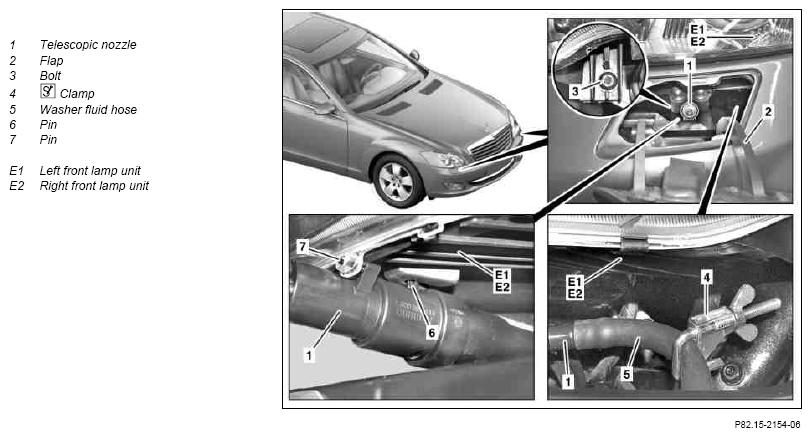

Fig 1: Identifying Headlamp Cleaning System Telescoping Nozzle Remove/Install Components - Illustrated On Model 221

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front section of fender liner in left or right front fender
2	Open flap (2) in front bumper and remove bolt (3)	The screw (3) remains on the left front lamp unit (E1) or right front lamp unit (E2).
3	Clamp off washer fluid hose (5) with clamping device (4) and detach from telescopic nozzle (1)		Fig 2
4	Remove telescopic nozzle (1)	Check that pins (6, 7) on telescopic nozzle (1) are correctly seated in guides on left front lamp unit (E1) or right front lamp unit (E2).
5	Install in the reverse order
6	Check adjustment of spray nozzles on headlamp cleaning system, adjust if necessary

Fig 2: Identifying Clamping Device (000 589 40 37 00)

Courtesy of MERCEDES-BENZ USA
