Cockpit Management and Data System (COMAND) block diagram - GF82.85-P-0003-11LAU

MODEL 216 up to 31.5.09 with CODE (530) COMAND APS USA (with navigation system) as of Model Year 2009 /AEJ 08

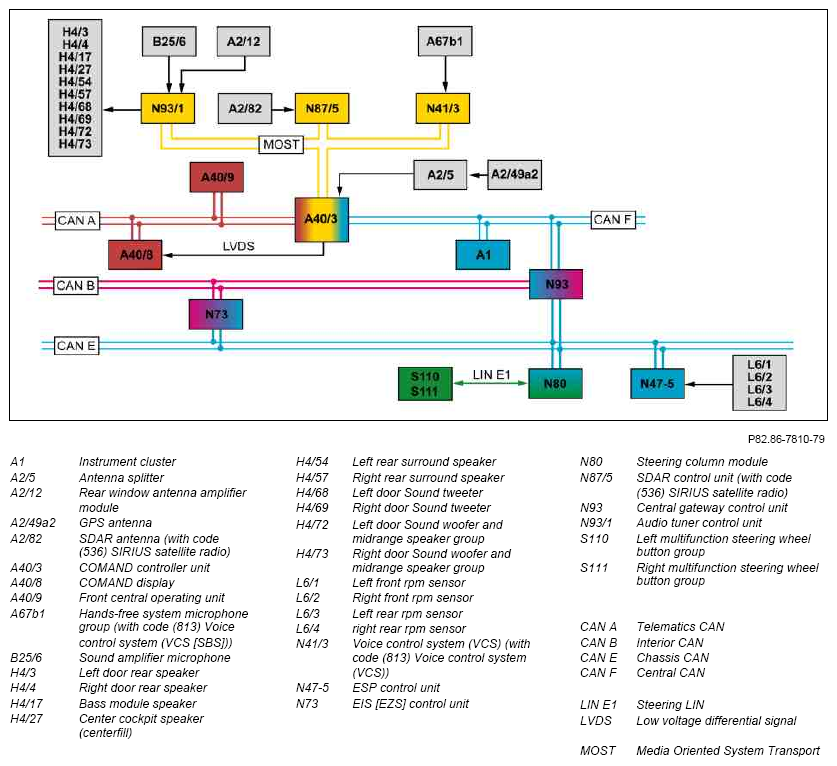

Fig 1: Cockpit Management And Data System (COMAND) Block Diagram
G10112292Courtesy of MERCEDES-BENZ USA
