Cockpit Management and Data System (COMAND) block diagram - GF82.85-P-0003-11LAJ

MODEL 216 with CODE (529) HIGH Class Japan as of Model Year 09 /AEJ 08

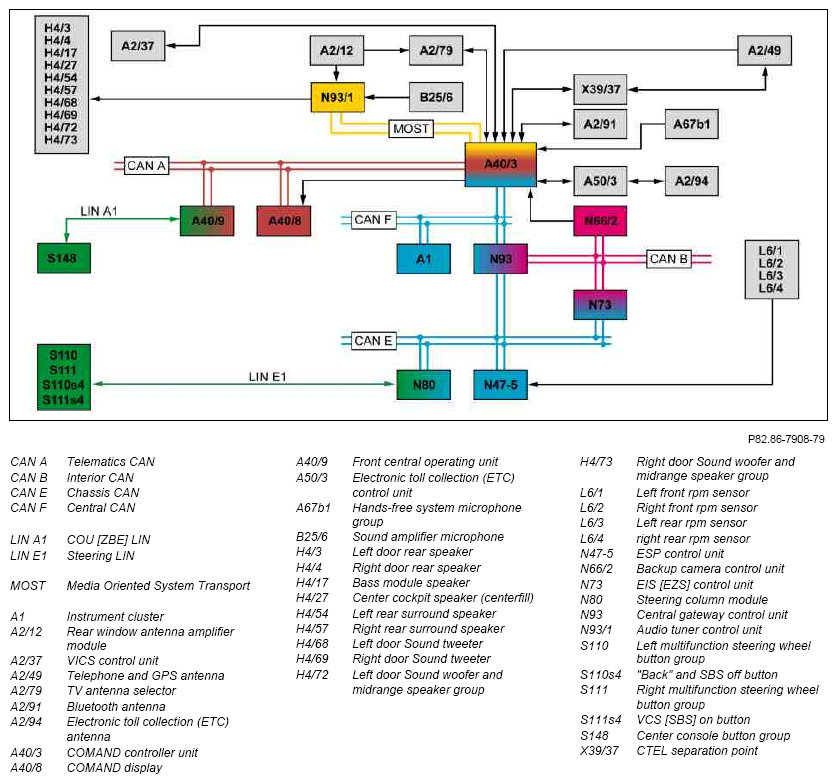

Fig 1: Cockpit Management And Data System (COMAND) Block Diagram

Courtesy of MERCEDES-BENZ USA
