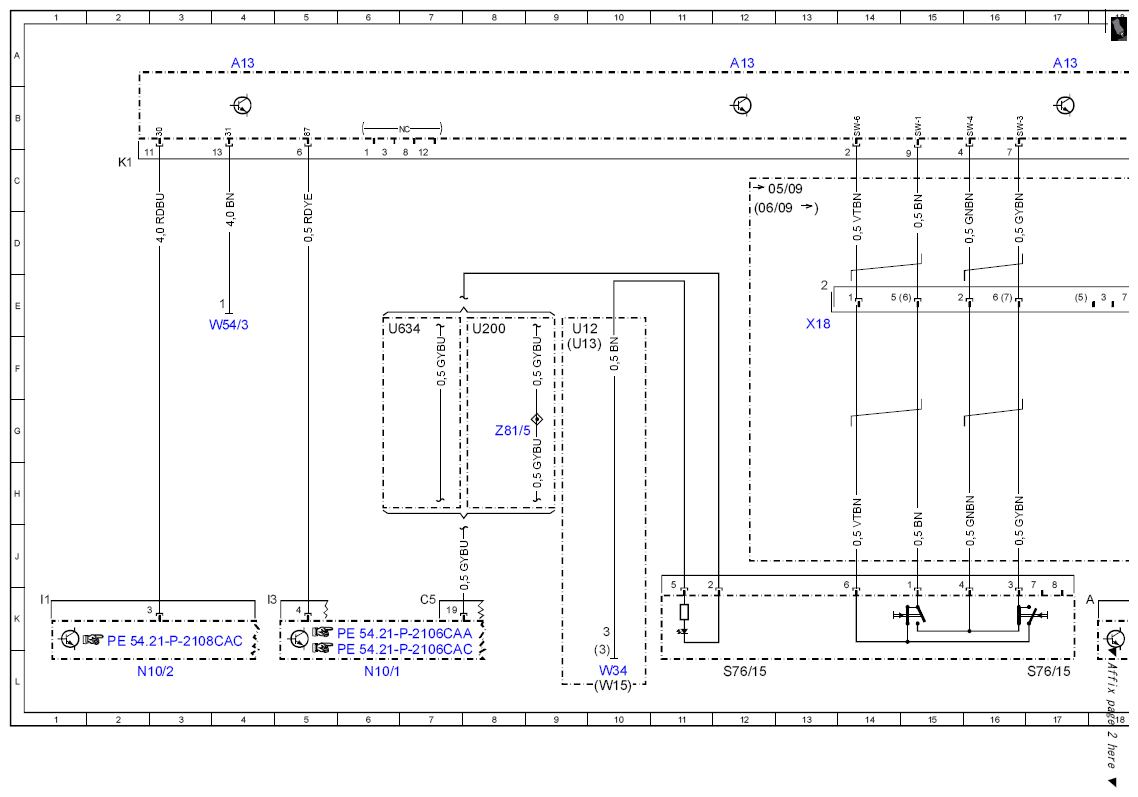

Wiring diagram for electric parking brake - PE42.20-P-2101-97CAA
MODEL 216.3 Control unit A13
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A13 | Electric parking brake control unit | 4A |
| A13 | Electric parking brake control unit | 12A |
| A13 | Electric parking brake control unit | 17A |

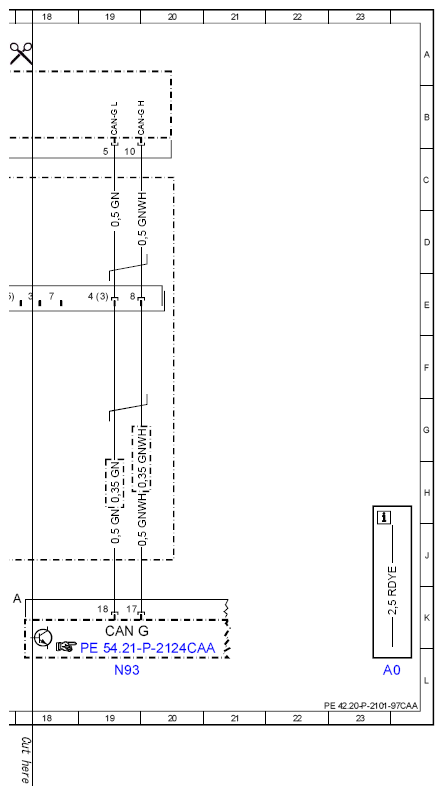

| CAN G | Front end CAN | 19K |
| N10/1 | Front SAM control unit with fuse and relay module | 6L |
| N10/2 | Rear SAM control unit with fuse and relay module | 2L |
| N93 | Central gateway control unit | 19L |
| S76/15 | Electric parking brake switch | 12L |
| S76/15 | Electric parking brake switch | 17L |
| U12 | Valid for left-hand drive vehicles | 9E |
| U13 | Valid for right-hand drive vehicles | 9E |
| U200 | Valid for TELE AID | 8E |
| U634 | Not valid for TELE AID | 6E |
| W15 | Power ground (electronics) | 9E |
| W34 | Ground (left footwell) | 10L |
| W54/3 | Ground (left rear wheelhouse) | 4E |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 13E |
| Z81/5 | Circuit 58d COC connector sleeve | 8G |
