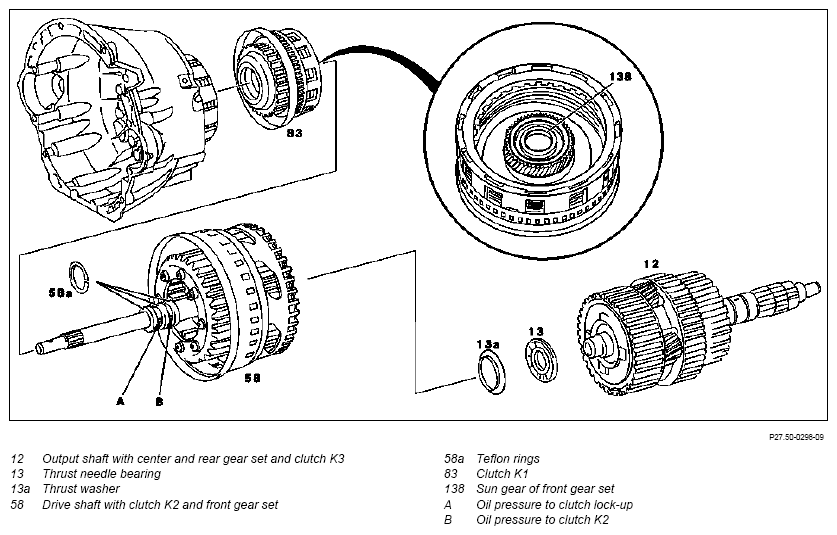

Removing and installing multiple-disc clutches K1, K2 and K3 - AR27.50-P-0621A
TRANSMISSION 722.6
| Dismantling | |||
| 1 | Remove transmission housing from converter housing | AR27.50-P-0601A | |
| 2 | Remove output shaft with center and rear gear set and clutch K3 (12) | According to findings | |
| Dismantle and assemble output shaft with center and rear gear set and K3 | AR27.50-P-0810A | ||
| Dismantle and assemble clutch K3 | AR27.51-P-0830A | ||
| 3 | Remove thrust needle bearing (13) and thrust washer (13a) | ||
| 4 | Remove drive shaft with clutch K2 and front gear set (58) | ||
| Dismantle and assemble drive shaft with clutch K2 and front gear set | AR27.51-P-0825A | ||
| 5 | Remove clutch K1 (83) | ||
| Remove, install multiple-disc brake B1 and oil pump | AR27.50-P-0721A | ||
| Dismantle and assemble clutch K1 | AR27.51-P-0800B | ||
| Assembly | |||
| 6 | Using grease, insert Teflon rings in the multiple-disc brake B1 in the groove so that the joint remains together | *BR00.45-Z-1007-06A | |
| 7 | Mount clutch K1 (83) | ||
| 8 | Using grease, insert Teflon rings (58a) in the groove so that the joint remains together | ||
| 9 | Install drive shaft with clutch K2 and front gear set (58) | ||
| 10 | Install front washer (13a) and thrust needle bearing (13) | ||
| 11 | Install output shaft with center and rear gear set and clutch K3(12) | ||
| 12 | Install transmission housing on converter housing | AR27.50-P-0601A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1007-06A | Anticorrosion grease/DB supply specification 6834.00 | A 001 989 37 51 |
