Remove/install selector lever - AR27.60-P-0930A
TRANSMISSION 722.6 up to 1.5.96
| Removal | |||
| 1 | Move selector lever to position "D" | ||
| Selector lever soldered | Transmission 722.6 as of 01.05.96 | BT27.60-P-0002-01A | |

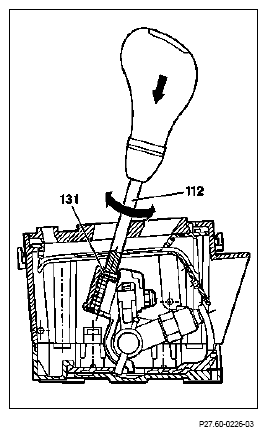

| 2 | Push selector lever (112) downwards and turn 90° counterclockwise | ||
| 3 | Pull up selector lever | ||
| Installation | |||
| 4 | Install selector lever (112) in clevis of floor shift with locking pin (131) positioned transverse to vehicle direction of travel | ||
| 5 | Turn selector lever clockwise 90° until it engages |
