Remove grooved ball bearing in rear transmission housing - AR27.50-P-0601-01A

MODIFICATION NOTES

13.2.08

Remove retaining ring with pliers, added

Step l

Fig 1: Identifying Puller (001 589 50 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Chuck (140 589 06 34 00)

Courtesy of MERCEDES-BENZ USA

1. Remove retaining ring of grooved ball bearing with pliers.
2. Screw collet into puller and tighten.
3. Attach puller over the bearing inner race.
4. The collet is tightened (picture A) by turning the puller upper part counterclockwise (arrow).
5. Using pulling device, pull grooved ball bearing out of transmission housing (picture B).

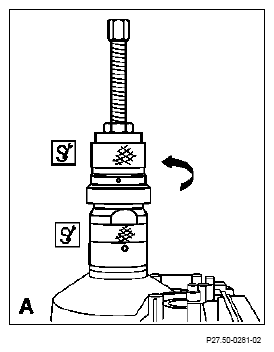

   Fig 3: Turning Puller Upper Part

   Courtesy of MERCEDES-BENZ USA

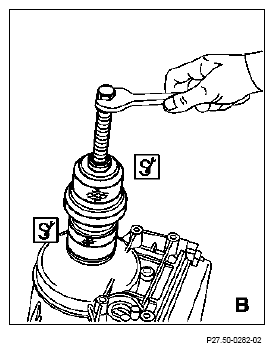

   Fig 4: Pulling Grooved Ball Bearing Out Of Transmission Using Pulling Device

   Courtesy of MERCEDES-BENZ USA
