Assembling piston guide and outer multiple-disc carrier of multiple-disc brake - AR27.50-P-0880-01A

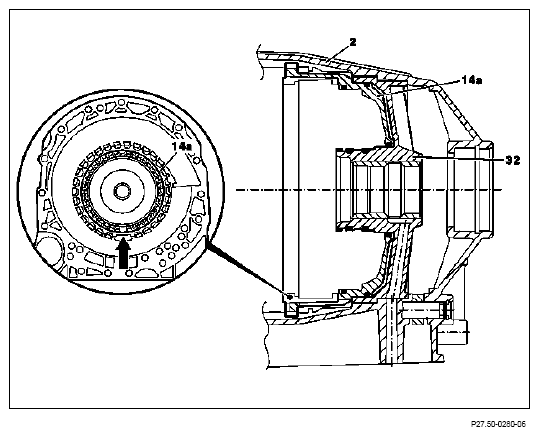

- Insert piston guide (32) in transmission housing (2) and tighten securely.
- Press in outer multiple-disc carrier/B2 (14a) up to the stop in the piston guide (32).
The recess in the external splines or the opening in the outer multiple-disc carrier/B2 (14a) must point downwards (arrow).
- Remove assembled component from transmission housing again for further assembly work.
