Strainer for modulating pressure and shift pressure control solenoid valve, new - BT27.35-P-0004-01A

Transmission 722.6

TRANSMISSION 722.6## ## as of 0538312

Strainer to protect against dirt and metal shavings for the modulating pressure and shift pressure control solenoid valves in the valve housing.

As a result also new control solenoid valves with a new part number.

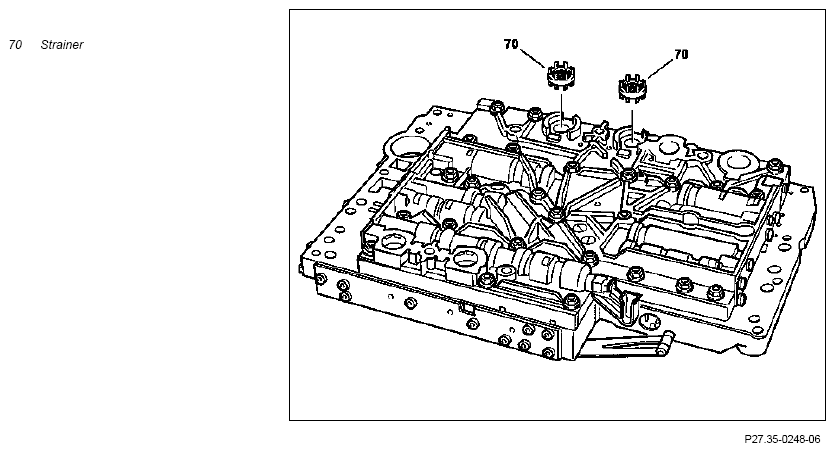

Fig 1: Identifying Strainers
G07538897Courtesy of MERCEDES-BENZ USA
