Bracket for transmission housing - WF58.50-P-2750-03A

Transmission 722.6

Drawing

Material St 37-2

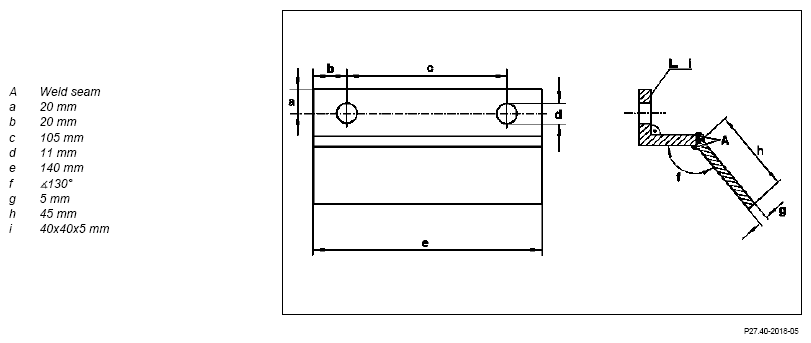

Fig 1: Identifying Dimensions Of Bracket For Transmission Housing

Courtesy of MERCEDES-BENZ USA

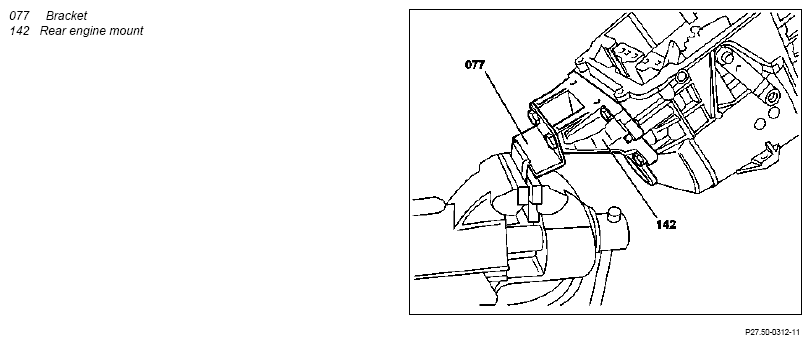

Fig 2: Identifying Bracket And Rear Engine Mount

Courtesy of MERCEDES-BENZ USA
