Pull rear axle shaft flange into angular contact ball bearing - AR35.20-P-0130-07SX

Fig 1: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Insertion Tool (211 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

1. Screw insertion tool (04) onto rear axle shaft (1).

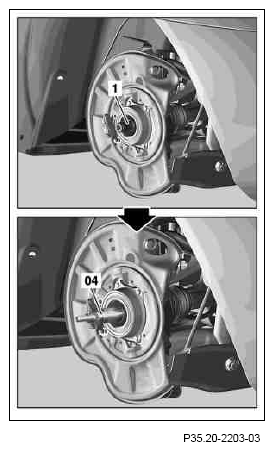

   Fig 3: Identifying Insertion Tool And Rear Axle Shaft

   Courtesy of MERCEDES-BENZ USA
2. Slide rear axle shaft flange (2) onto rear axle shaft.
   Fig 4: Identifying Rear Axle Shaft Flange

   Courtesy of MERCEDES-BENZ USA
3. Position the extraction and insertion tool 01) on the rear axle shaft flange (2), in the process screwing the spindle (03) onto the insertion tool (04).
4. Attach extraction and insertion tool (01) to rear axle shaft flange (2) using three wheel bolts.
5. Pull in the rear axle shaft flange (2) up to the stop in the angular contact ball bearing (3), to do this turn the nut (02) and counterhold the spindle (03).

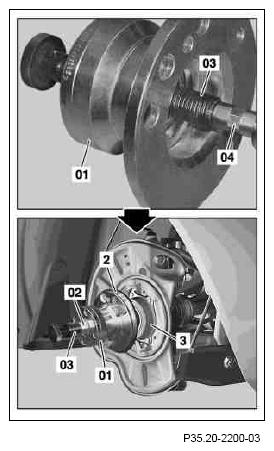

Fig 5: Identifying Extraction And Insertion Tool On Rear Axle Shaft Flange Positioning
