Remove/install compressor - AR32.22-P-2001SX

MODEL 216, 221

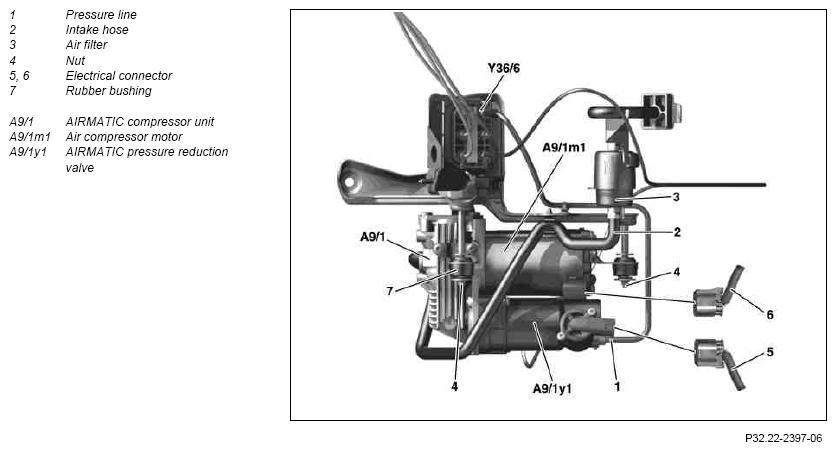

Fig 1: Identifying Compressor Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove bottom engine compartment paneling	Vehicles without code (Z07) Top protection	AR61.20-P-1105SX
		Vehicles with code (Z07) Top protection	AR61.20-P-1105SXS
2	Release front section offender liner in right front fender
3	Detach pressure line (1) from compressor unit (A9/1)		*BA32.22-P-1004-03D
	Notes on AIRmatic		AH32.22-P-1000-02SX
		If the pressure line connection or pressure line are damaged: ↓
		Repair AIRmatic pressure line connection.	AR32.22-P-2001-02SX
			*000589122800
			*211589000900
		Leak detection spray	*BR00.45-Z-1002-03A
4	Detach intake hose (2) from air filter (3)	Except model 221.095/195
5	Separate electrical connector (5) from (pressure) relief valve (A9/1y1)
6	Separate electrical connector (6) from engine (A9/1m1)
7	Unscrew nuts (4) and remove compressor unit (A9/1)		*BA32.22-P-1003-03D
8	Detach intake hose (2) from compressor unit (A9/1)	Model 221.095/195 Installation:  Check for correct routing and fastening of intake hose.
	Checking
9	Check rubber mounts (7) of compressor unit (A9/1)	Check rubber mounts for hardening and damage and replace if necessary: ↓
		Replace rubber mounts of compressor unit.	AR32.22-P-2011SX
10	Replace air suspension compressor relay	When replacing the compressor unit When replacing the compressor unit, always replace the air suspension compressor relay, because its switching contacts may have been damaged beforehand.
	Relay assignment of fuse and relay box in left side of engine compartment	Vehicles up to model year (MY) 08 / change year 07	GF54.15-P-1257-03SX
		Vehicles as of model year 09 / change year 08	GF54.15-P-1257-03LE
11	Install in the reverse order
12	Check AIRmatic for leaks.		AR32.22-P-8100SX
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Perform engine test run and check AIRmatic for proper operation

AIR SUSPENSION

Number	Designation		Model 216	Model 221
BA32.22-P-1003-03D	Nut, compressor to bracket	Nm	3	3
BA32.22-P-1004-03D	Pressure line, air suspension to compressor	Nm	5	5

Fig 2: Identifying Slitting Knife (000 589 12 28 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wrench Socket (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-03A	Leak detection spray
