Remove/install bracket for compressor - AR32.22-P-2009SX

MODEL 216, 221

Shown on model 221

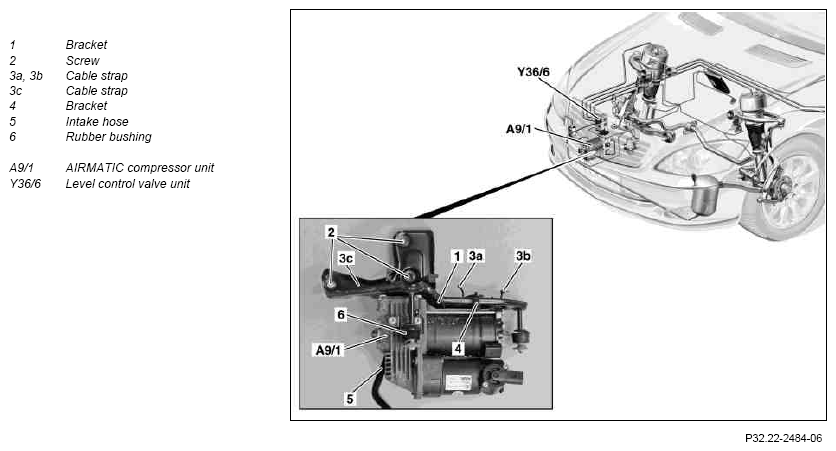

Fig 1: Identifying Bracket For Compressor Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove front section of fender liner in right front fender	Model 221.095/195
2	Remove compressor unit (A9/1)		AR32.22-P-2001SX
3	Disconnect electrical connector on valve unit (Y36/6)	Except model 221.095/195
4	Detach valve unit (Y36/6) and set aside	Pressure lines remain on valve unit.	AR32.22-P-2015SX
5.1	Detach cable straps (3a, 3b), remove electrical feed lines and set aside	Except model 221.095/195
5.2	Pry cable straps (3a, 3c) for electrical feed lines out of holder (1)	Model 221.095/195
6	Unclip intake hose (5) from bracket (4) and set aside	Except model 221.095/195
7	Remove bolts (2) and remove bracket (1) of compressor unit (A9/1) downwards		*BA32.22-P-1008-03D
	Checking
8	Check rubber mounts (6) of compressor unit (A9/1)	Check rubber mounts for hardening and damage and replace if necessary: ↓
		Replace rubber mounts of compressor unit.	AR32.22-P-2011SX
9	Install in the reverse order

AIR SUSPENSION

Number	Designation		Model 116	Model 221
BA32.22-P-1008-03D	Bolt for compressor bracket to front crossmember	Nm	10	10
