Install/remove emergency buffer - AR32.00-P-1000SX

MODEL 216.3, 221.0 /1 with AIRmatic

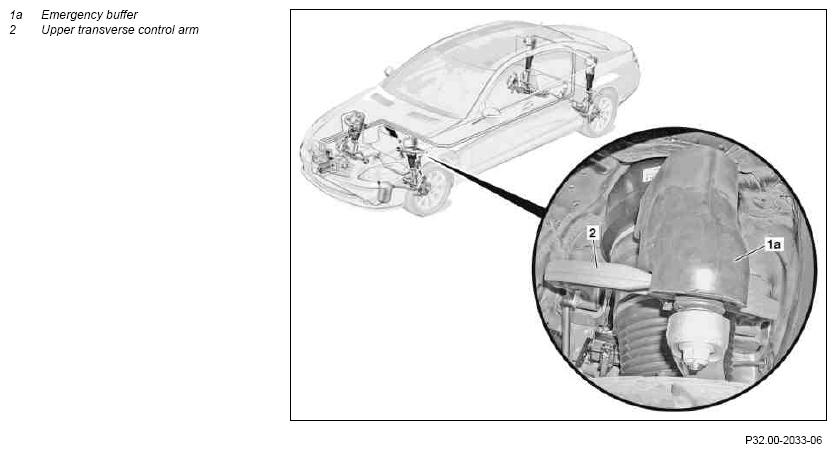

Fig 1: Identifying Upper Transverse Control Arm And Emergency Buffer

Courtesy of MERCEDES-BENZ USA

	Installing, removing
	Notes on AIRmatic		AH32.22-P-1000-02SX
		Emergency buffers (1a) should only  be used for maneuvering.
1	Raise appropriate side of vehicle
2	Place emergency buffer (1a) on upper transverse control arm (2)		*221589003100
3	Lower vehicle slowly	Make sure that the emergency buffer (1 a) rests against the top of the wheel well.
4	Remove in the reverse order
5	Replace upper transverse control arm (2)	Model 221 with CODE (Z07) Highest protection If the emergency buffer (1a) is inserted, the upper ball joint in the upper transverse control arm (2) will be damaged by the increased weight. The upper transverse control arm (2) must  be replaced.	AR33.20-P-0500SXS

Fig 2: Identifying Set Of Emergency Buffers (221 589 00 31 00)

Courtesy of MERCEDES-BENZ USA
