Disposing on spring actuator - OS32.30-P-0620-01A

OS32.30-P-0620-01A	Disposing on spring actuator
	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Risk of injury  caused by drilling gas-filled assemblies or components (noncombustible gases)	Wear safety glasses and a face mask.	AS00.00-Z-0006-01A

1. Allow hydraulic fluid or brake fluid to flow out of the oil gallery (a) into a suitable container for disposal.
2. Drill gas chamber (b) of the spring accumulator on the arched side (arrow) with a drill bit (3 mm dia.) until the gas flows out.
3. Dispose of spring brake reservoir as scrap metal.
   Fig 1: Locating Gas Chamber Of Spring Accumulator On Arched Side

   Courtesy of MERCEDES-BENZ USA
   Fig 2: Identifying Oil Gallery And Gas Chamber Of Spring Accumulator

   Courtesy of MERCEDES-BENZ USA

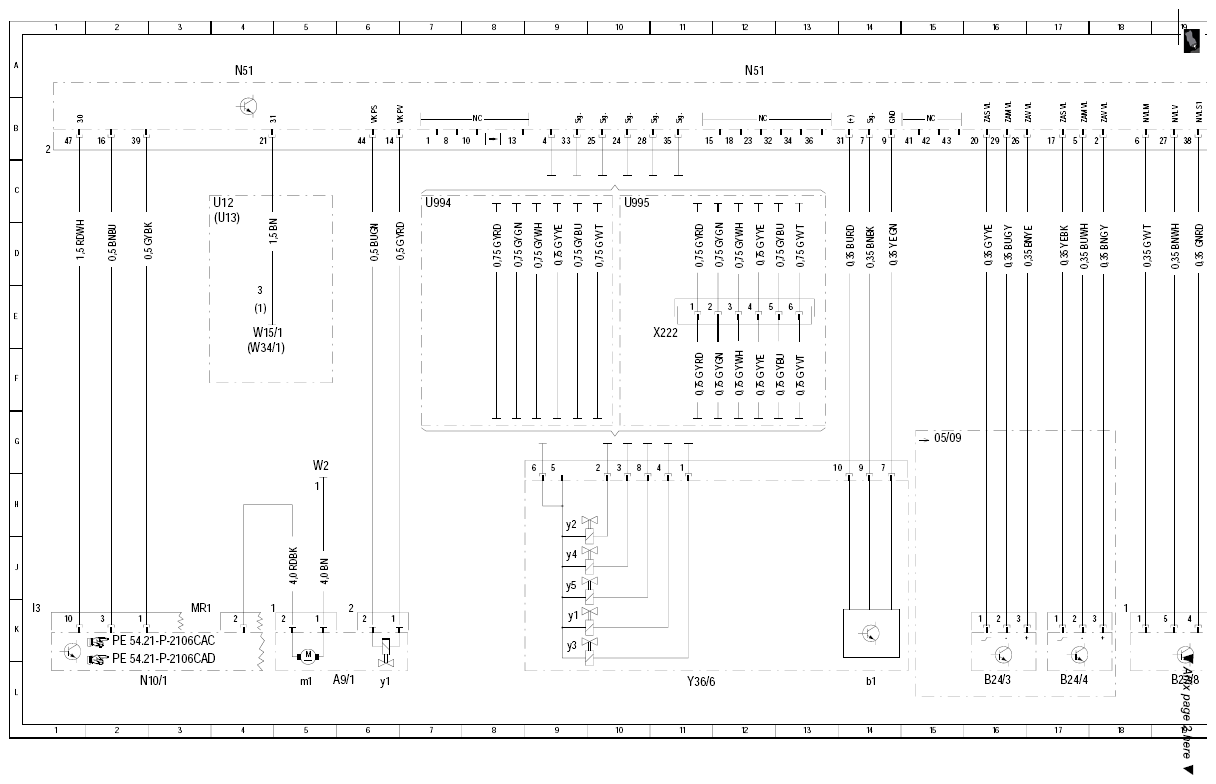

Fig 3: AIRmatic Control Unit Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

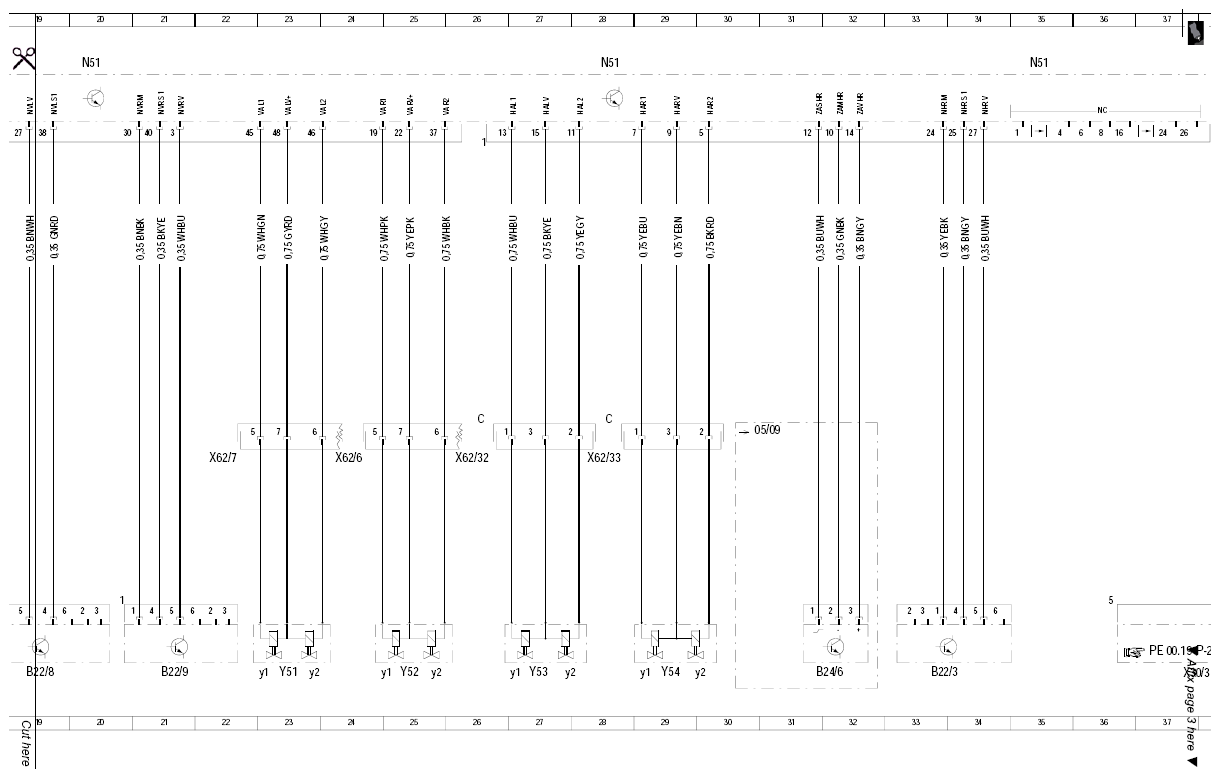

Fig 4: AIRmatic Control Unit Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 5: AIRmatic Control Unit Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
