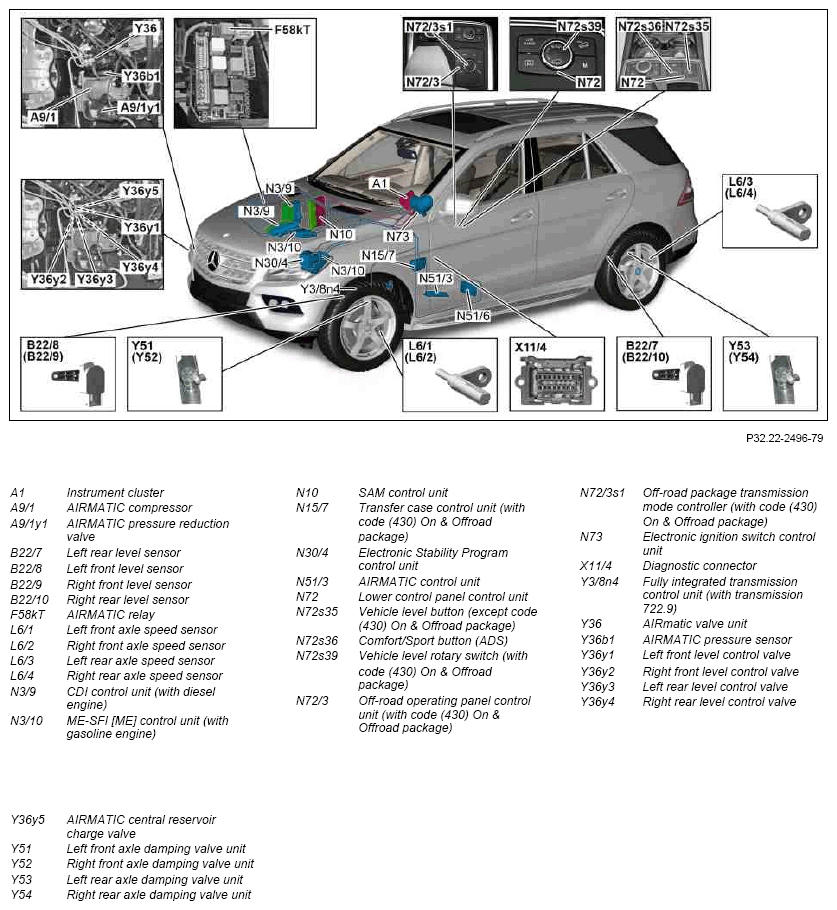

Overview of AIRmatic system components - GF32.22-P-9998GR
MODEL 166 with CODE (489) AIRmatic (air suspension with level adjustment and adaptive damping system (ADS))
Shows model 166.0
The ME-SFI [ME] control unit has the following installation location depending on the engine:
- Engine 276, on left of engine
- Engine 278 and 157 in the center of the engine
The CDI control unit has the following installation location depending on the engine:
- Engine 642, in the right front wheel arch behind the wheel
- Engine 651, on the air filter housing
| Instrument cluster, component description | A1 | GF54.30-P-6000GR |
| CDI control unit, component description | N3/9 With engine 642.8 |
GF07.16-P-6000OGR |
| N3/9 With engine 651.9 |
GF07.16-P-6000OLG | |
| ME-SFI [ME] control unit, component description | N3/10 With engine 276.9 |
GF07.61-P-6000MMG |
| N3/10 With engine 278.9, 157.9 |
GF07.61-P-6000MMR | |
| SAM control unit, component description | N10 | GF54.21-P-4157GR |
| Component description of transfer case control unit | N15/7 With code (430) On & Offroad package and For code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS) |
GF28.19-P-3200VGC |
| Electronic Stability Program control unit, component description | N30/4 | GF42.45-P-5119GR |
| AIRmatic control unit, component description | N51/3 with CODE (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS) |
GF32.22-P-5109GR |
| Lower control panel control unit, component description | N72 N72s35 N72s36 N72s39 |
GF54.21-P-6060GR |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001GR |
| Fully integrated transmission control unit, component description | Y3/8n4 with transmission 722.9 |
GF27.60-P-5165AHA |
| AIRmatic, function description, contents | GF32.22-P-0998GR |
