Front/rear ABC pressure sensor, component description - GF32.50-P-4601SX
MODEL 216.3 up to Model Year 8
MODEL 221.0 /1 with CODE (487) Active Body Control (ABC) up to Model Year 8

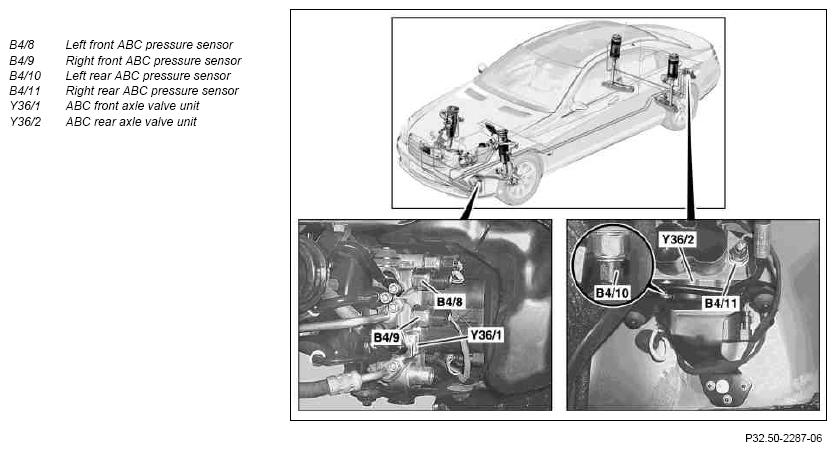

Illustrated on model 221
Location
The left front ABC pressure sensor and right front ABC pressure sensor are located in the ABC front axle valve unit. The left rear ABC pressure sensor and right rear ABC pressure sensor are located in the ABC rear axle valve unit.
Task
The ABC pressure sensors determine the pressure in the respective suspension strut. The pressure values determined are read in by the ABC control unit (N51/2) for control of the Active Body Control (ABC) function.
