ABC suction restrictor valve, component description - GF32.50-P-4101SX

MODEL 216.3 up to Model Year 8

MODEL 221.0 /1 with CODE (487) Active Body Control (ABC) up to Model Year 8

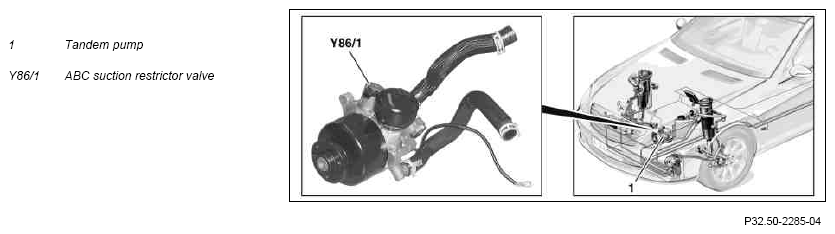

Illustrated on model 221

Location

The suction restrictor valve is located on the tandem pump.

Task

The suction restrictor valve serves the pressure control in the Active Body Control (ABC) system.

Design

The suction restrictor valve is a proportioning valve.

Function

By opening or closing the suction restrictor valve the ABC control unit (N51/2) controls the pressure supply of the ABC system with a constant oil pressure. The suction restrictor valve is closed in a de-energized condition.
