ABC pressure sensor, component description - GF32.50-P-4602SX
MODEL 216.3 up to Model Year 8
MODEL 221.0 /1 with CODE (487) Active Body Control (ABC) up to Model Year 8

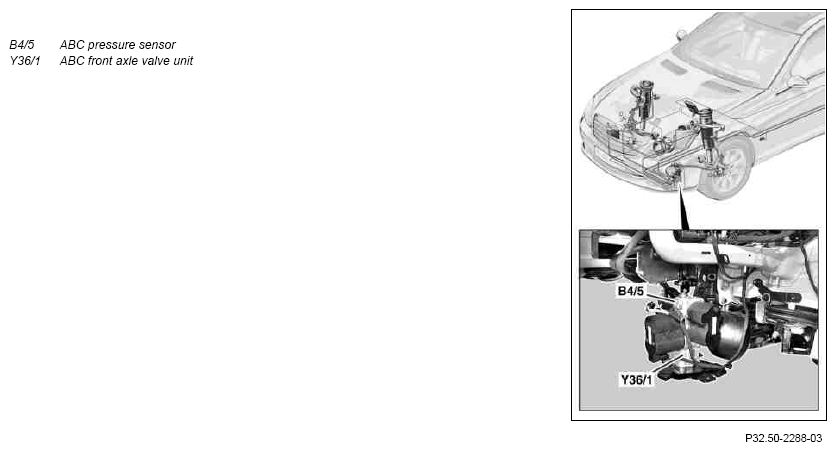

Illustrated on model 221
Location
The ABC pressure sensor is located in the ABC front axle valve unit.
Task
The pressure sensor measures the current oil pressure in the Active Body Control (ABC) system.
The value determined is read in by the ABC control unit (N51/2) to control the Active Body Control (ABC) function.
