ABC level sensor, component description - GF32.50-P-4623SX
MODEL 216.3 up to Model Year 8
MODEL 221.0 /1 with CODE (487) Active Body Control (ABC) up to Model Year 8

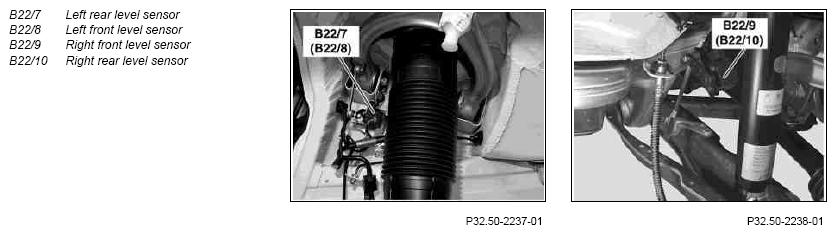

Location
The front level sensors are located on the upper transverse control arm.
The rear level sensors are located on the transverse control arm.
Task
The level sensors determine the current vehicle level.
The values determined are read in by the ABC control unit (N51/2) for control of the Active Body Control (ABC) function.
