ABC body acceleration sensor, component description - GF32.50-P-4622SX
MODEL 216.3 up to Model Year 8
MODEL 221.0 /1 with CODE (487) Active Body Control (ABC) up to Model Year 8
Illustrated on model 221

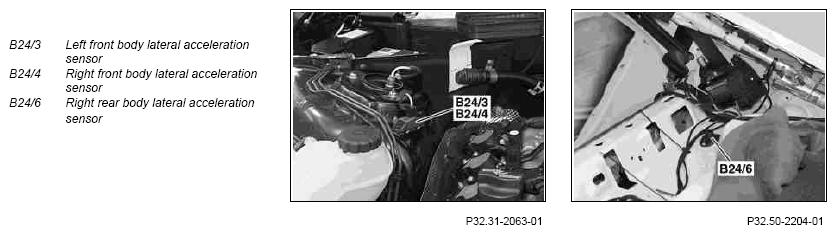

Location
The front body acceleration sensors in each case are located in the area of the suspension strut tower in the engine compartment.
The rear body acceleration sensor is located in the area of the right rear suspension strut tower.
Task
The acceleration sensors are used to measure the vertical acceleration of the vehicle body.
This information is required by the ABC control unit (N51/2) for the dynamic stabilization and damping of the vehicle body.
