Remove/install intermediate shaft and replacing deep-groove ball bearing - AR33.30-P-0625SYZ

MODEL 221, 216 with 4MATIC

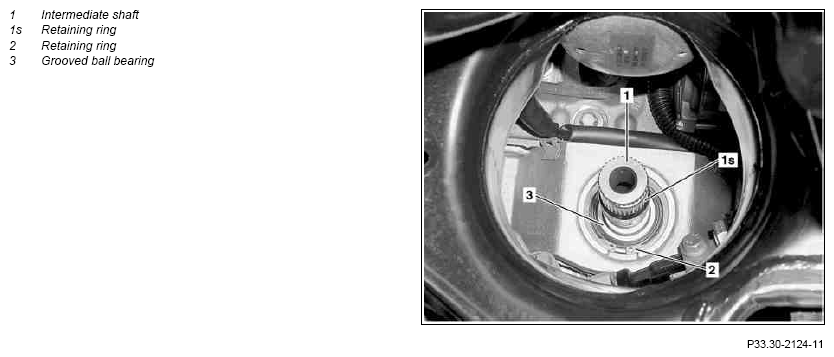

Fig 1: Identifying Intermediate Shaft, Retaining Ring And Grooved Ball Bearing

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left front axle shaft		AR33.30-P-0620SYZ
2	Remove retaining ring (2)
3	Pull out intermediate shaft (1) with grooved ball bearing (3) and replace if necessary	Replace the circlip (1s).
4	Install in the reverse order
