Remove pinion housing - AR33.30-P-0469-01SYZ

Fig 1: Identifying Impact Extractor (602 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Tool (221 589 04 33 00)

Courtesy of MERCEDES-BENZ USA

The knock-on balancing weight must be mounted on the impact extractor (02) such that the impact travel is short. This prevents impact against the body when the pinion housing (2) is pulled out.

1. Mount extraction tool (03) on drive flange (4).

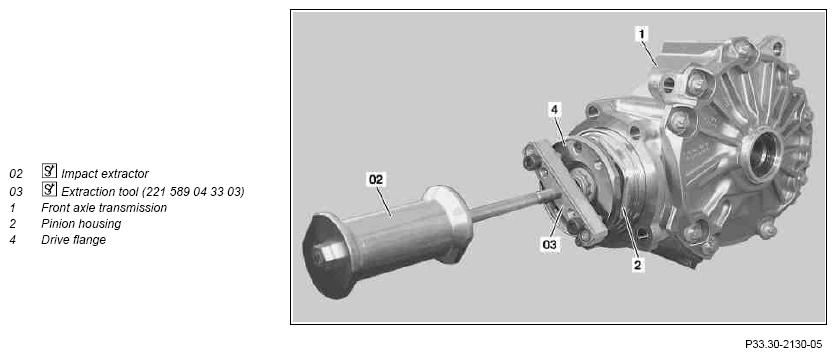

   Fig 3: Identifying Mount Position Of Extraction Tool On Drive Flange

   Courtesy of MERCEDES-BENZ USA
2. Mount impact extractor (02) on extraction tool (03).
3. Pull pinion housing (2) out of front axle differential (1).
