Install new radial sealing ring on outside right of front axle gear - AR33.30-P-0540SYZ
MODEL 204.08/09/28/29/98/99, 212.08/09/28/29, 218.39
MODEL 216, 221 with 4MATIC
Illustrated on model 221.08
| Remove/install | |||
| 1 | Remove right front axle shaft | Model 216, 221 | AR33.30-P-0620SYZ |
| Model 204, 212, 218 | AR33.30-P-0620CWX | ||

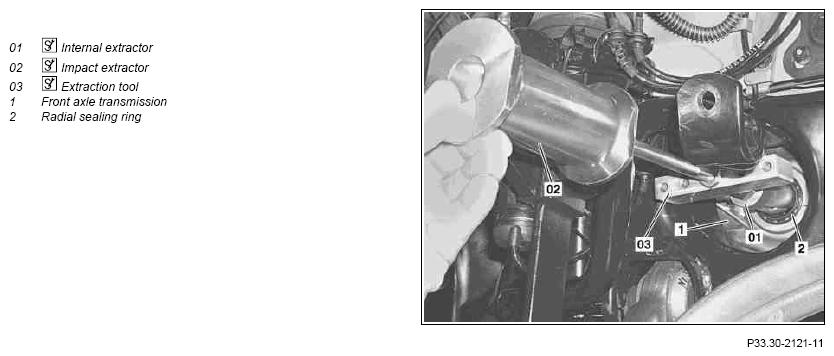

| 2 | Pull radial sealing ring (2) out of front axle transmission (1) using internal extractor (01), extraction tool (03) and impact extractor (02) | *203589033300 | |
| *602589003300 | |||
| *221589043300 | |||
| *221589041500 | |||
| 3 | Drain oil out of front axle transmission (1) | *BA33.30-P-1008-03G | |
The front axle transmission does not have an oil filler hole and must be filled via the front axle shaft opening. |
*BF33.30-P-1001-03C | ||
| *BF33.30-P-1001-03F | |||
| Universal hypoid gear oils (SAE 85 W-90) | Sheet 235.7 | BB00.40-P-0235-07A | |
| 4 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 5 | Perform engine test run and check front axle transmission (1) for leaks and that it is functioning correctly |
FRONT AXLE TRANSMISSION
| Number | Designation | Model 204 | Model 212 | |
|---|---|---|---|---|
| BA33.30-P-1008-03G | Oil drain screw, front axle gear | Nm | 20 | 20 |
FRONT AXLE TRANSMISSION
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA33.30-P-1008-03G | Oil drain screw, front axle gear | Nm | 20 | 20 |
FRONT AXLE TRANSMISSION
| Number | Designation | Model 218 | |
|---|---|---|---|
| BA33.30-P-1008-03G | Oil drain screw, front axle gear | Nm | 20 |
FRONT AXLE GEAR
| Number | Designation | Model 216 with 4MATIC | Model 221 with 4MATIC | ||
|---|---|---|---|---|---|
| BF33.30-P-1001-03C | Hypoid gear oil | Filling capacity | Liters | 0.6 | 0.6 |
| Specifications for service products | Sheet | BB00.40-P-0235-07A | BB00.40-P-0235-07A |
FRONT AXLE GEAR
| Number | Designation | Model 204 | Model 212 | Model 218 | ||
|---|---|---|---|---|---|---|
| BF33.30-P-1001-03F | Hypoid gear oil | Filling capacity | Liters | 0.6 | 0.6 | 0.6 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0235-07A | BB00.40-P-0235-07A | BB00.40-P-0235-07A |
